Cherry E13-90EB switch spdt 15A 125/250 vac #235
Cherry E13-90EB Microswitch/Switch SPDT 15A 125/250 VAC

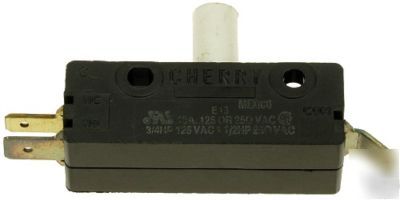

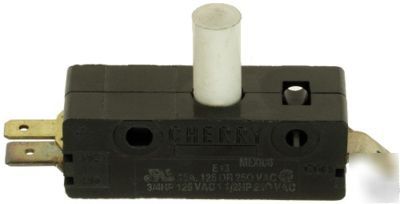

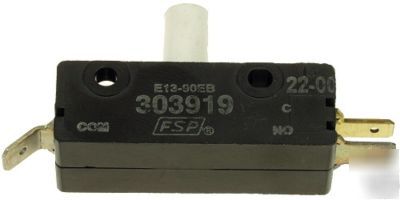

Brand new Cherry E13-90EB 303919 FSP momentary switch. Rated at 15A 3/4HP 125VAC and 15A 1/2HP 250VAC. This switch is SPDT(single pole double throw). The wiring terminals are 1/4" wide push-on spades on the Common and Normally Open terminals, and .178" wide push-on spade on Normally Closed terminals. These switches have two 1/8" ID mounting holes which go all the way through them for mounting with machine bolts or rivets.
Manufacturers Part #s: E13-90EB, 303919 FSP
Overall Dimensions: 1-1/4" Tall x 2-1/2" Wide x 5/8" Deep (including actuation button and wiring terminals)
Housing Dimensions: 5/8" Tall x 1-7/8" Wide x 5/8" Deep (not including actuation button and wiring terminals)
Contact Rating: 15A 3/4HP 125VAC / 15A 1/2HP 250VAC
Connection Leads: 1/4" and .178" Wide Push-On Spade Tab Terminals
