> Barksdale D1X-A3SS-ul diaphragm pressure switch, xp

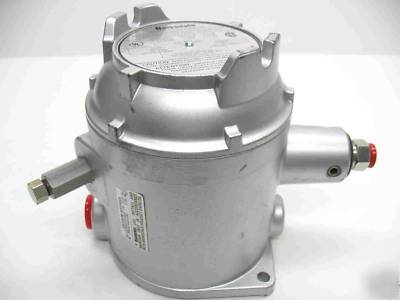

Barksdale D1X-A3SS-ul diaphragm pressure switch, xp
D1X - Single Setpoint w/ Housing Version
A - 10 amps @ 125/250 VAC; 3 amps @ 480 VAC; (standard for pressure range 3SS, 80SS or 150SS)
3SS - Adjustable Pressure Range:
-Decreasing - psi (bar) .03(.00) Min. / 2.85(.2) Max.
-Increasing - psi (bar) .18(.01) Min. / 3(.2) Max.
-Approximate Deadband - psi (bar) .07-.15 (0-.01)
-Proof Pressure - psi (bar) 10(.7)
-Decreasing - in. Hg .06 Min. / 5.72 Max.
-Increasing - in. Hg .34 Min. / 6 Max.
-Approximate Deadband - in. Hg .14-.28
WHAT THE MANUFACTURER STATES ABOUT THEIR CURRENT PRODUCT:
Barksdale's D1X and D2X Explosion Proof Diaphragm Pressure Switches offer high accuracy and reliability, providing an ideal solution for your hazardous locations pressure control requirements. With vacuum and positive pressure ranges to 150 psi, NEMA 4,7,& 9 enclosures, a covered terminal strip and tamper-proof external adjustment, Barksdale D1X and D2X Explosion Proof Diaphragm Pressure Switches meet your needs in a wide variety of applications. These switches are available in single setting or dual control. An internal set screw allows for easy internal adjustment of setpoints. For applications requiring a highly accurate switch in a durable package, Barksdale's Explosion Proof Diaphragm Pressure Switches are the ideal choice.
- High Accuracy and Reliability
- Explosion Proof Housing for Hazardous Locations
- Tamper Proof Setpoint Adjustment
- Ideal for Pressure or Vacuum Applications
CONDITION: Surplus NEW, some scratches and scuffs from transport (see pictures).
Barksdale D1 Pressure Switch catalog webpage
