45" arm 11.9" column willis rd-1100 radial drill, 5 hp,
45" Arm 11.9" Column Willis RD-1100 RADIAL DRILL, 5 HP,
45" Arm 11.9" Column Willis RD-1100 RADIAL DRILL, 5 HP, #4MT, Box Table, Coolant

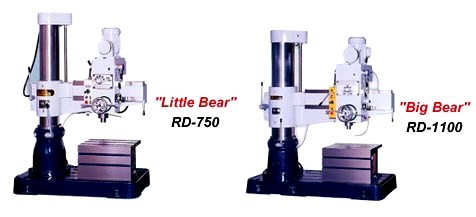

NEW WILLIS RADIAL DRILL "BIG BEAR"
32" horizontal drill head travel
Spindle feeds: 3 steps (0.002"~0.006")/rev
Spindle stroke/spindle taper: 9-7/8" / MT4
Spindle speeds (RPM): 44-1500 (12)
Spindle feeds (inch/rev): 0.002" - 0.006" 3 steps
Max distance, spindle center to column: 45"
Min distance, spindle center to column: 13"
Horiz travel of headstock: 32"
Max distance, base to spindle: 48-1/2"
M/C over height of column: 85"
M/C height from floor (max): 101-3/4"
Dimension of base (L x M x K): 70-3/4" x 31-1/2" x 6-11/16"
Effective area of table (R x S x T): 20" x 25" x 17"H
