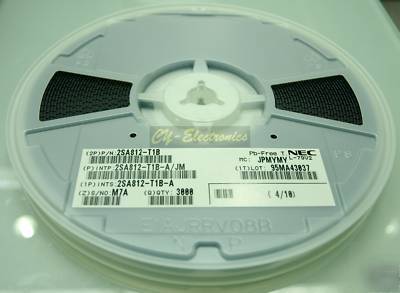

1000 pcs pnp transistor 2SA812-T1B nec
Brand: NEC , PNP SILICON EPITAXIAL TRANSISTOR MINI MOLD
- High DC Current Gain: hFE = 200 TYP. (VCE = 6.0 V, IC = 1.0 mA)
Collector to Base Voltage VCBO 60 V
Collector to Emitter Voltage VCEO 50 V
Emitter to Base Voltage VEBO 5.0 V
Collector Current (DC) IC 100 mA
Storage Temperature Range Tstg 55 to +150 C
