Novotechnik electric 40" transducer tlh 1000
NOVOTECHNIK ELECTRIC 40" TRANSDUCER TLH 1000

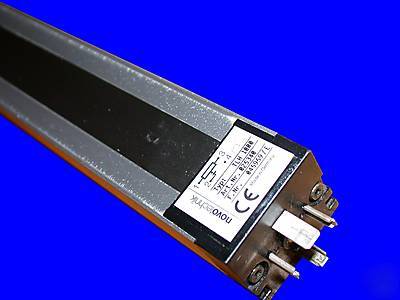

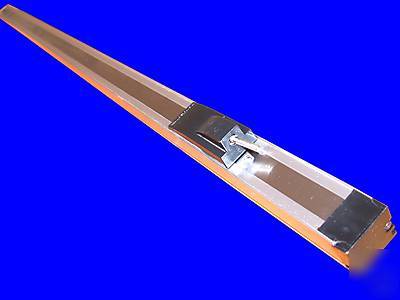

This is a New Novotechnik Electronic 40" Transducer Slide, Model #TLH 1000.
TLH transducers are designed for the direct, accurate measurement of displacement or length in control, regulation and measuring applications. The rodless design allows the actuator to be driven from the side, along the unit length, this allows the total length of the transducer to be shorter and permits longer stroke lengths.
The simplicity of the measuring technique both passive and absolute ensures that the transducer is immune to external electrical interference, and that it does not require any built-in power supply to maintain positional information in the event of power failure. Like other potentiometrics, it is a real-time sensor.
A magnetically restrained stainless steel band completely covers the opening through which the actuator operates. The ball coupling is of a new design which prevents forces, generated through parallel or angular offsets, from being transmitted to bearing surfaces. Due to the design and the selected materials the temperature coefficient of the transducer is extremely small. Careful attention to detail and choice of materials has resulted in a transducer with an extremely low temperature drift. The robust design ensures reliable operation even under harsh environmental conditions such as vibration or temperature changes.
The TLH series is designed for clamp mounting. The use of clamps simplifies installation and adjustment.
ball coupling avoids side loads
long life > 100 x 106 movements
high resolution better than 0.01 mm
connector to DIN 43650 (hydraulic connector)
http:// /catalogs/pdfs/TLH.pdf
I will fully guarantee this item - includes everything shown.
