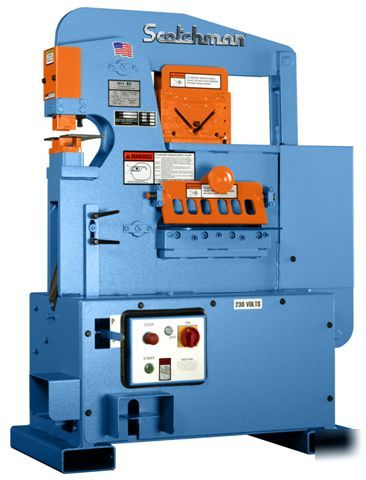

New 50 ton scotchman 5014CM ironworker
50 Ton Scotchman 5014CM NEW IRONWORKER
50 Ton Punch Station with 3-Station Revolving Turret (1-1/4" in 1/2")
Three 2" Die Holders, Three Punch Nuts with Wrench and Three Strippers
Angle Shear 4" x 4" x 3/8" at 90 and 2" x 2" x 3/8" at 45
14" Flat Bar Shear with 4-Way Reversible Blade (3/4" x 4", 1/2" x 8", 3/8" x 10", 1/4" x 14")
Rectangular Notcher, 2-1/2" x 3" x 5/16" , 2-1/2" x 2-3/4" x 3/8"
Electrical Box Supplied with Emergency Palm Button and Lock-out Tag-out Accommodations
230/460 volt /3 Phase Electrics (must specify voltage)
All Guards Necessary to Comply with ANSI B 11-5 Standards
Special Tooling 2-1/4 Max. Dia.
Angle Shear 90 Degrees 4 x 4 x 3/8
Angle Shear 45 Degrees 2 x 2 x 3/8
Pipe Notcher , 1 , 1-1/4 , 1-1/2 , 2
Rectangle Notcher 2-1/2 x 3 x 5/16
90 Deg. V. Notcher 6 x 6 x 1/8
Square Tube Shear to 1 , 14 ga.
Picket Tool Housing , , 1
SPM - Light Material Stroke 40 SPM
SPM - Heavy Material Stroke 14 SPM
Motor Standard 3 hp, 3 ph, 230/460
Motor Optional 5 hp, 1 ph, 220V (add $345 for single phase)
