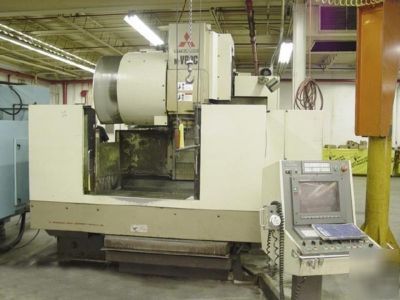

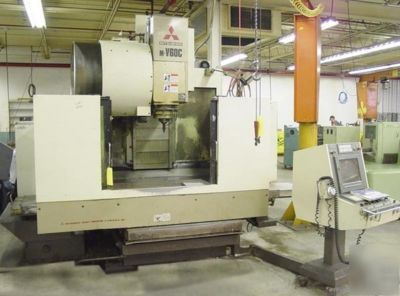

Mitsubishi m-V60C vertical machining center 50 taper
MITSUBISHI M-V60C CNC VERTICAL MACHINING CENTER
New 1991, S/N 7V60C009, Stock# K13031
EQUIPPED WITH: Mitsubishi Meldas 330 CNC w/Color CRT, Multiple Part Program Storage,
RS-232 Port, AC Spindle and Axis Drives, ProgrammableOffsets, Tool
Tip Graphics, Rugged CAT 50 Spindle, Super Heavy Duty Box Ways,
Chip Auger and Coolant System. CATALOGUE SPECIFICATIONS:Table Working Surface................................. 55.1" x 23.6"
Table Load Capacity................................... 00 LBS
Longitudinal Travel (X-Axis).......................... 39.4"
Cross Travel (Y-Axis)................................. 23.6"
Vertical Travel (Z-Axis).............................. 21.7"
Rapid Traverse Rate (X & Y-Axis)...................... 591 IPM
Rapid Traverse Rate (Z-Axis).......................... 473 IPM
Tool Storage Capacity................................. 24
Spindle Horsepower.................................... 20 HP
Spindle Speed Range................................... 40-6000 RPM
Spindle Taper......................................... #50 CAT
Approximate Machine Dimensions........................ 102" x 100"
Approximate Machine Height............................ 108"
Approximate Machine Weight............................ 22,000 LBS CONDITION: Machine appears to be in Excellent Condition !
