Security alarm cable wire - 1000 ft.. #18 awg 2/c

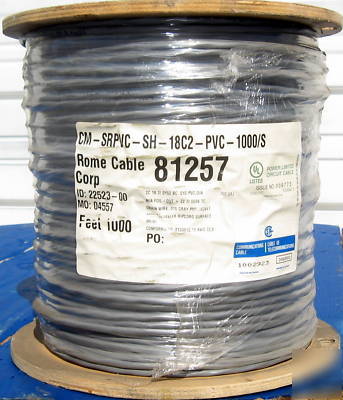

1000 feet of Gray #18 AWG 2 Conductor, 7 Stranded, Security Alarm Cable, Type CM.
This wire is for indoor use in life safety, intercom, signal, audio, power limited control systems and communications circuits. Rated 300 volts and -6 degrees Celsius to +60 degrees Celsius, dry locations.
725 - Remote - Control, Signaling
Construction: 18 AWG 7 stranded bare copper , (semi-rigid) SRPVC insulation, color coded, cabled, aluminum/ polyester foil tape pluss tinned copper drain, gray SRPVC jacket, surface printed.
This 2 conductor #18 stranded wire has an insulation thickness of 10 Mils SRPVC with the jacket thickness of SRPVC of 15 mils. The outside diameter is .162 inches and the net weight of 1000 feet of cable is 22 lbs. Capacitance of 59 picofarads per foot.
