Namco photoelectric control module #EP140-12001

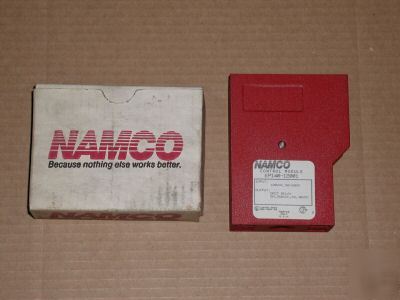

Namco Photoelectric Control Module #EP140-12001
Unused surplus item in original box
* These beefed-up sensors are smart as well as tough. Die cast aluminum housings and totally sealed optics help make them ideal for severe environments. All models use a modulated infrared LED emitter and receiver to ignore ambient light. Plug-in time delay modules offer wide flexibility in application options.
* Designed for harsh industrial environments, the EP100 Series is especially equipped to alert you to potential problems. When other sensors run into alignment or dirty optic problems, you don t know about it until they fail. The EP100 uses a unique tri-color LED to indicate impending problems. When the LED glows:
* Green stable operation (>70% reflected signal strength)
* Yellow marginal operation (40-70% reflected signal strength)
* Red insufficient reflected signal
* Diecast Aluminum Housing Epoxy Coated
* Supply Voltage: 120 VAC
* Power Consumption: 1.0 VA
* Output Circuit Type: DPDT
* Output Rating: 5A Resistive @ 250 VAC or 30 VDC
* Reponse Time On/Off: 20mS/25mS
* Maximum Switching Frequency: 25 Hz
