Hypertherm 088016 powermax 45 system w/ 20' torch

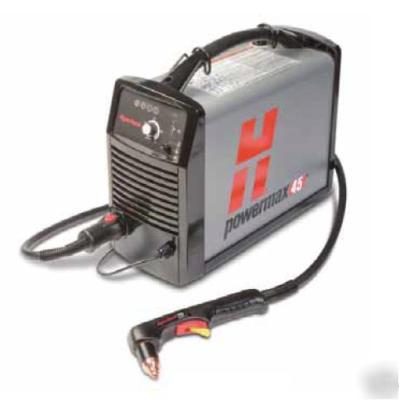

Hypertherm 088016 Powermax 45 Standard System w/ Torch
High-Performance Portable Plasma Cutting System
Brand New Hypertherm Powermax 45 Plasma Cutter with T45v Hand Torch, 240V Power Supply - not refurbished, not rebuilt, not reconditioned. Genuine Hypertherm product - stock number 088013
Mechanized Cutting (with Machine Torch)
Input Voltages: 200-240 V, 1-PH CSA
Input Current @ 5.95 kW at 28-34 Amps Output Current: 20-45 Amps
Duty Cycle @ 40 C (104 F): 50% @ 45 Amp, 132 V
Duty Cycle @ 40 C (104 F): 60% @ 41 Amp, 132 V
Duty Cycle @ 40 C (104 F): 100% @ 32 Amp, 132 V
Dimensions: D/16.75" W/6.75" H/13.7"
Gas Supply: Clean, dry, oil-free air or nitrogen
Input Power Cable Length: 10 ft
3 yr Power Source warranty, 1 yr Torch warranty
