Gigatronics 80701A 50MHZ-18GHZ modulated power sensor

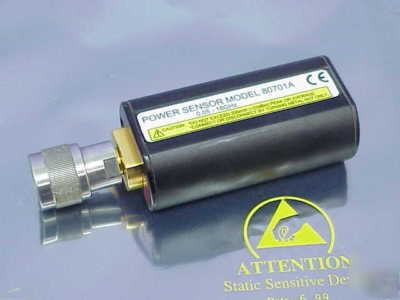

Gigatronics 80701A Modulated Power Sensor, 50 MHz - 18 GHz, -64 to +20 dBm
Lightly used and in MINT condition.
The Gigatronics 80701A Power Sensor has a frequency range of 50 MHz to 18 GHz and is used
with the 8650A series of power meters. The Giga-tronics 80701A provides up to 10 MHz of system
bandwidth to measure peak and average power of wide band, third-genration CDMA signals over
* Max Power: +23 dBm (200 mW)
* Power Range: -67 dBm to +20 dBm CW / -60 dBm to +20 dBm Modulated (from 250 MHz)
* Power Linearity: -60 to -20 dBm: 0.00 dB | -20 to +20dBm: 0.05 dB/10dB
* VSWR: 1.12: 0.01-2GHz / 1.22: 2-12.4GHz / 1.29: 12.4-18GHz
