> Dongan transformer 145KVA 575/460Y/266 460 y 145 kva 3R

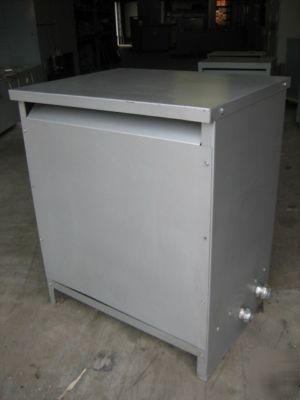

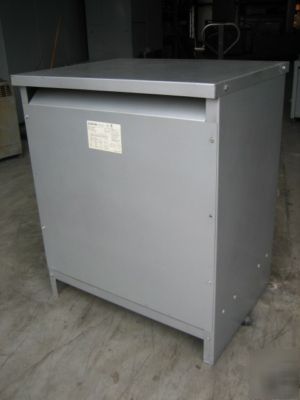

Dongan transformer 145KVA 575/460Y/266 460 y 145 kva 3R

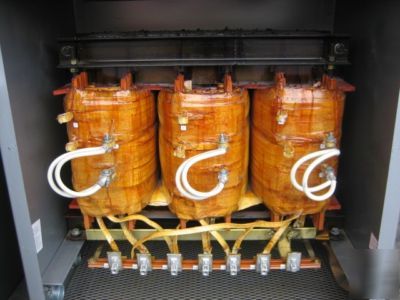

This Transformer is in Great Condition Externally and Excellent Condition Internally.

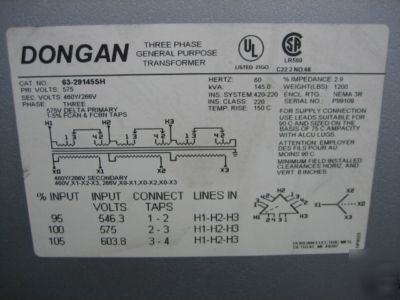

Catalog No.: 63-29145SH Hz: 60 % Impedance: 2.9
Primary Volts: 575 kVA: 145.0 Weight: 1200 Lbs.
Secondary Volts: 460Y/266 V Ins. System: 420-220 Encl. Rtg.: NEMA 3R
Phase: Three Ins. Class: 220 Serial No.: P99109 Temp. Rise: 150 C
34" (Width) x 27" (Depth) x 41" (Height)
