Agilent/hp 35659A scsi spectrum analyzer module card

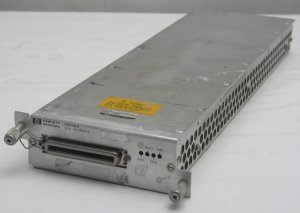

Agilent/HP 35659A SCSI Spectrum Analyzer Module Card Used
Model/Part No:35659A Our Item ID: 2578
Agilent/HP 35659A SCSI Interface Module
The HP 35659A module provides high-speed throughput capability for the HP 3565S system. Bypassing the signal processor module, it takes data from the internal high- speed system bus and transfers it directly to selected Small Computer System Interface (SCSI) compatible mass-storage devices or to an optional internal hard disk. The module supports trans-fer rates up to 2.6 MBytes/ sec (1.3 Msamples per sec). The actual data transfer rate is typically limited by the storage device.
Eavesdrop mode takes data directly from the system bus while the signal processor module uses its HP-IB connection for other tasks.
Monitor capability allows data to be viewed during the throughput session.
Read mode takes data from SCSI compatible devices and puts it on the internal system bus for the signal processor module to process.
Multiple HP 35659A modules can be installed in a system to increase the maximum storage size. Up to eight modules may be in a system.
The maximum system transfer rate is 2.6 MBytes/sec, or 1.3 Msamples/sec with option AT3.
An optional internal 1 GByte hard disk, option AT3, is fully contained inside the module. It functions as a target on the SCSI network.
Item Tested?: Not TestedPhysical Condition: Good; Working Condition: Not Fully Tested, but Guaranteed Not DOA5 | 20x 8x4 | 2
