Mission technology electronics lab,integrated e-lab

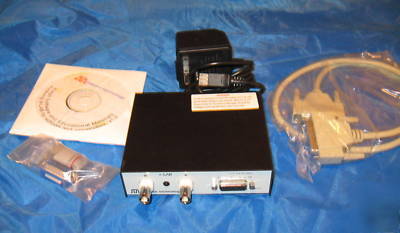

This listing is for a device plus software that enables your computer to be an electronics laboratory. According to the manufacturer, the device substitutes for a #1: Dual channel digital storage scope,#2: 0-4 MHz dual signal generator, #3: strip chart recorder, #4: dual digital voltmeter, #5: Digital frequency meter, #6: spectrum analyzer
Device was primarily built for educational purposes and came from a university electrical engineering department.
Software works with Windows XP. Connects through DB25 cable.
Excellent condition. No signs of use.
More info can be obtained here:
/References/league02.pdf
If not satisfied for any reason, send it back within 60 days for a refund. Thank you for your interest.
Rated at 50 Megasamples/sec, multiplexed dual channel scope with usable 100 megasample/sec output
2 independent crystal sine and square generators with exact frequencies
triple power supply, 5V, 0o.5 amp, and dual tracking 0-8v 250 ma
Built-in DC, RMS, PK, to PK and frequency meter (10 Hz to 2 MHz) 5% accuracy
Chart recorder with user definable sampling intervals from 0.01 sec to 8 hours/sample
triggered with AC or DC coupling
Scope or real-time record mode
16 frequency ranges in scope mode
Built-in meter connected internally to monitor the user power supplies' voltages
store results to disk or print
10 gain ranges:5v/dv to 5 mv/dv
easy installation/autoport detection
ActiveX Operation Panel for incorporation to web-based labs
3-bit output for control purposes.
