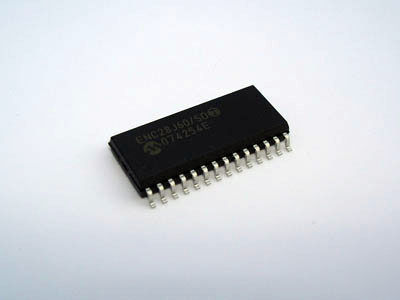

ENC28J60/so microchip spi ethernet controller
* Two programmable LED outputs for LINK, Tx, Rx, collision and full/half-duplex status
* Seven interrupt sources with two interrupt pins
* Clock out pin with programmable prescallar
* Operating voltage range of 3.14V to 3.45V
* IEEE 802.3 compatible Ethernet controller
* Integrated MAC and 10BASE-T PHY
* Receiver and collision squelch circuit
* Supports one 10BASE-T port with automatic polarity detection and correction
* Supports Full and Half-Duplex mode
* Programmable padding and CRC generation
* Programmable automatic rejection of erroneous packets
* SPI interface with speeds up to 10 Mb/s
