Cincinnati milacron monoset tool and cutter grinder '78

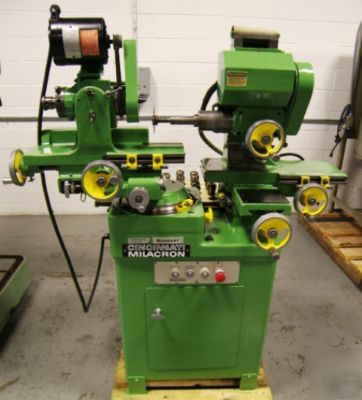

Preowned CINCINNATI MILACRON Monoset Cutter and Tool Grinder, Model MT S/N 3152A0178-0084 (New 1978)
Workhead swing over main slide, maximum
Maximum/Minimum workhead collet hole diameter
Maximum grinding wheel diameter
Maximum length of work between spindle and
Workhead slide travel: longitudinal
cross, offset slide, total travel
front of center
rear of center
Wheelhead slide travel: longitudinal
cross
Wheelhead, vertical movement: above center
below center
(3) Index plates for the spiral lead indexing unit: 10, 12, and 14 divisions
(26) Straight cylindrical collets ranging in size from 5/8" to 1-7/32" with (12) adapters
that fit into the straight cylindrical collets and are used when grinding smaller
Hard chrome ways on three slides
1/4 H.P. 3/60/230-460 volt motorized workhead
1/2 H.P. 3/60/230-460 volt wheelhead drive motor
(F.O.B. Truck, Hauppauge - Long Island, NY)
