1200' sealpic-fsf direct burial osp pe-89 24AWG 900 pr

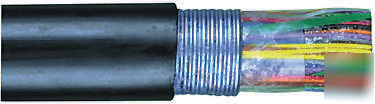

1200' SEALPIC-FSF Direct Burial OSP PE-89 24awg 900 pr
Outside Plant (OSP) communications cables carry most of the voice and data traffic for the world's telecom networks and no one is more experienced in the business of OSP cable than Superior Essex. This is why we are able to offer a complete line of RDUP (Rural Development Utilities Program)/RUS (Rural Utilities Service ) OSP Copper cables for aerial or direct burial or duct applications where moisture, mechanical or rodent protection is required.
This cable is brand new, still on the spools, it was bought for a job and never used. This cable was made in 2009 so it hasn't been sitting arounf dor a long time. This cable is meant for direct burial or aerial uses. It retails for over $20k a spool wholesale. This cable is filled and shielded. For the spec sheet check out the following PDF:
http:// /uploadedFiles/Communications_Cable/Product_Information/RDUP_RUS_OSP_Copper_Cable/sealpic_FSF.pdf
SEALPIC-FSF Cables are designed for low risk direct burial or duct applications where protection from moisture is required and aluminum shielding is desired. SEALPIC-FSF may be used aerially, but must be attached to a support strand.
* Twisted into pairs with varyinglay lengths
* Provides thermal protection
* Fully flooded shield interfaces
* Inhibits corrosion and water migration
* Black, polyethylene jacket
* Provides a tough, protective covering designed to withstand exposure to direct sunlight,
atmospheric temperature changes and stresses expected in standard installations
* Conductor: Solid annealed copper
* AWG (mm): Available in 19 (0.90), 22 (0.64), 24 (0.51) and 26 (0.40)
* Insulation: Dual insulation consisting of an inner layer of foamed, natural polyolefin over which is applied a solid (skin) layer of polyolefin colored in accordance with industry standards
* Twisted Pairs: Individual insulated conductors; twisted into pairs with varying lay lengths; specific color combinations provide pair identification
* 25-Pair Core: Pairs are assembled into a cylindrical core
* > 25-Pair Core: Cables larger than 25-pair are assembled into units, which are then used to assemble the core; units are identifiable using color-coded binders
* Filling Compound: 80C ETPR compound, completely filling the interstices between the pairs and under the core wrap
* Core Wrap: Non-hygroscopic, dielectric tape applied over the core
* Shield: Corrugated, copolymer coated, 8 mil aluminum tape applied longitudinally with an overlap; flooded shield interfaces
* Jacket: Black, polyethylene
* Jacket Marking: Identifying information includes a telephone handset, cable code, pair count, AWG, date of manufacture and sequential length markings at 2 foot intervals
* Standards Compliance: ANSI/ICEA S-84-608-2007, RDUP 7 CFR 1755.890 (PE-89) RoHS-compliant
* All items sold by Potomac Metals are sold with a 7 day warranty.
