12-15-7 cincinnati hydroform press

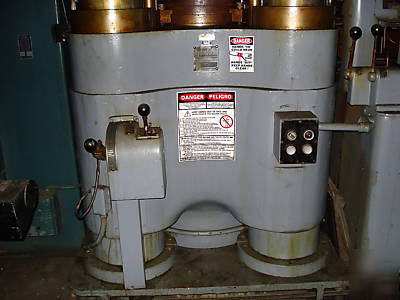

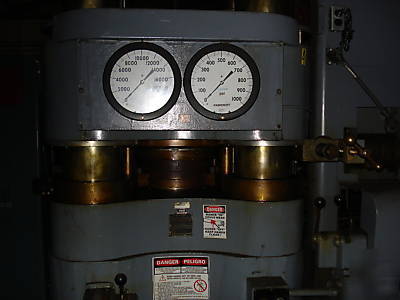

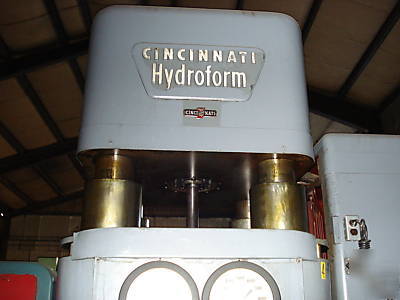

12-15-7 Cincinatti "Hi-Production" Hydroform Press
Max. Blank Diameter............................................................................. 12 inch
Max Draw Depth....................................................................................... 7 inch
Max Punch Diameter............................................................................ 10 inch
Max Dome Cavity Pressure................................................................... 15kpsi
Max Blank Gauge................................................................................. 3/8 inch
Max cycles per hour..................................................................................... 180
Main Pump Motor..................................................................................... 50 HP
Pilot Motor.................................................................................................... 5 HP
Supercharge Motor................................................................................. 7.5 HP
Scavenger Motor........................................................................................ HP
Machine Dimensions........................................... 144 x 72 x 120 (W x L x H)
Machine Weight................................................................................ 45,000Lbs
Mechanical Valves Qty. 3 New
220 Gallons of Hydraulic Oil New
