11" x 40" yam model gu-27-100H universal cyl grinder

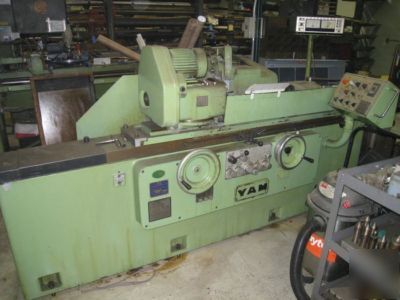

11" X 40" YAM MODEL GU-27-100H UNIVERSAL CYLINDRICAL GRINDER
Table swivels, clockwise/CCW 9 deg./4 deg.
Standard grinding wheel size 14"O.D. x 2"W 5" Hole
Grinding wheel spindle speeds (2) 1700/1900 RPM
Wheelhead displacement per rev. of handwheel
(coarse/fine) 0.0625"/.0000625"
Infeed handwheel per rev. 0.039"
Motorized workhead and tailstock:
Infinitely variable workheadspeeds 46 to 360 RPM
Workhad swivel range 1 3/16" Approx. machine weight 5,511 LBS Approx. dimensions 78"L-R x 88"D x 59"H

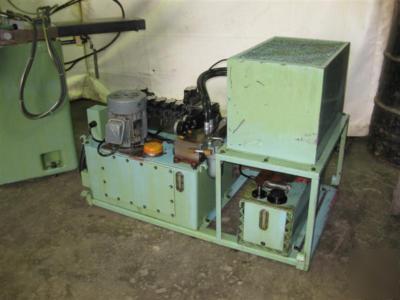

Hydrodynamic spindle bearings w/auto lubrication

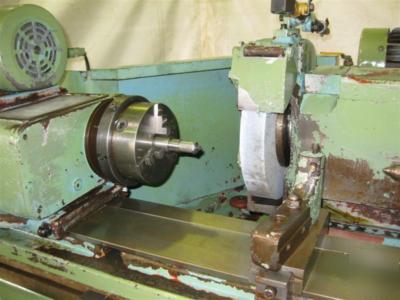

Dual live/dead headstock spindle
5 HP 3/60/230-460 Volt wheelhead drive motor
