10WATT high power warm white 600LM led + driver 85-265V
10WATT high power WARM WHITE 600LM LED + DRIVER 85-265V

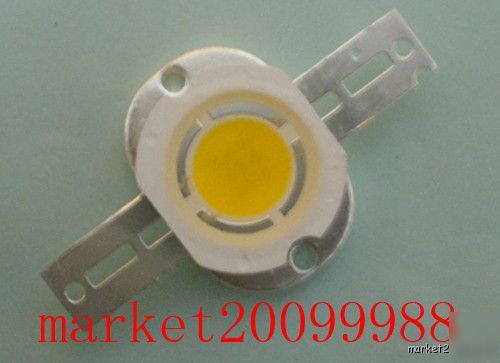

Specification for 10W Warm White LED:
Intensity Luminous (Iv): 450 ~ 600LM
Operating Temperature: -30 ~ 110 C
Storage Temperature: -40 ~ 120 C
Manual Soldering Time at 260 C: < 5 Sec
DC Forward Voltage (VF): 10.5 ~ 11.0 Vdc
DC Forward Current (IF): 1000mA ~ 1500mA
Reverse Current (uA) : <= 50
Operating Temperature: -20~80
Function: Open circuit, Short circuit and Over loading
Application: Fit for 10 Watt Energy Save / High Power LED in Any Colors.
(Note: the pink wire is positive and the black wire is negative, both can attach to the led. The two white wires connect to the power supply.)
Our 10w leds need cooling board to avoid the extra heat. Pls use the 10w led as the product specifications If improper operation caused led burning out, we won't be responsible for it
