Gunn transmitter 34.3GHZ ka band wr-28 34.3 ghz w&j

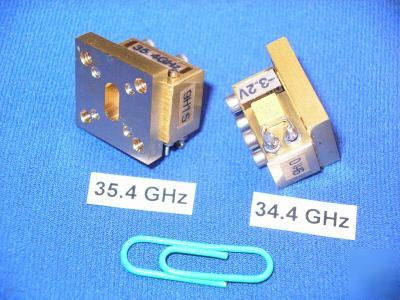

Here you get one new Ka-Band 35 GHz Gunn transmitter manufactured by WJ-Industries Watkins & Johnson. The frequency can be tuned mechanically. Ideal as microwave 35 Ghz test source or as local oscillator L.O. for a mixer to build a sensitive Ka-band receiver. These type of transmitters are used in cars for distance radars, as signal source for measuring the sensitivity of radar receivers and can be used for FM modulated Audio and Video transmitters in microwave links with distances of several miles depending on the used antenna.
35 GHZ Transmitter specifications:
Frequency: 34.4 GHz or 35.4 GHz
Tuning: mechanically +- several MHz
Supply Voltage: -3.2V or -3.5V depending on model
Dimensions: 0.825 x 0.825 x 0.381 in or 21 x 21 x 15mm
