Automationdirect ethernet/serial plc software vb driver
Automation Direct Ethernet and Serial ActiveX DLL Driver

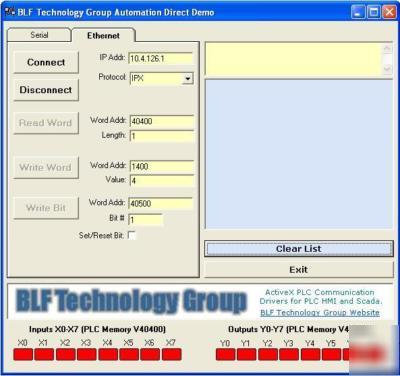

This HMI demo application shows how to create a simple Visual Basic program to communicate with the Automation Direct and Koyo DL05, DL06, 105, 205, 305, and 405 family of programmable controller via an Ethernet TCP/IP or Serial K-Sequence driver. It includes the capability to communicate from your desktop or laptop computer via a serial communications connection or via an Ethernet connection to your PLC. The driver is an ActiveX dll control and is field tested in several projects and applications. It is perfect for any custom HMI application you need to create in Visual Basic and it includes a demo application with Visual Basic source code to show you how to use the control. We also include a PDF manual that lists the driver instructions and how to call them.
Use Visual Basic and many other ActiveX Control Container applications to create custom HMI/SCADA applications using our runtime-free ActiveX Control.
We also provide a pre-built demo example application and example VB source code is included.
* Built-in auto-polling feature
* ActiveX control is a DLL and requires no form control.
* Example applications and source code included.
* Easily connect office systems to factory floor.
* Huge base of installations, most organizations already have Ethernet installed.
* Easy to install, easy to support.
* Extremely cost-effective with no runtime fees or dongle keys.
* DL05, DL06, and 105 Brick PLCs via the serial port
* 205 Series including the D2-230, D2-240, D2-250, D2-250-1 and the D2-260 Processors via the serial port or Ethernet via an Ecom module.
* Please Note: The D2-230 does not work with the Ethernet driver.
* 305 Series including the D3-330, D3-340, and the D3-350 Processors via the serial port.
* Please Note: The D3 series does not work with the Ethernet driver via an Ecom module.
* 405 Series including the D4-430, D4-440, and the D4-450 Processors via the serial port or Ethernet via an Ecom module.
