Arctichill 50 ton air cooled chiller, great deal 460V

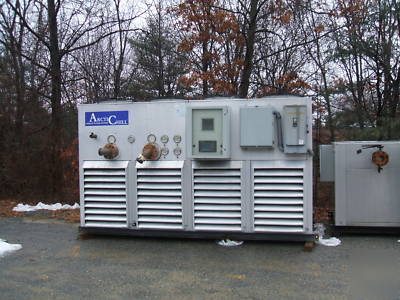

ArctiChill 50 ton Air Cooled Chiller System w/ 8 Fans and 300 gallon Internal Loop tank.
Vertical Discharge Horizontal Package Chiller
***contact us for any questions, inspection, more photos***
***priced to sell and move prior to May 1st***
This unit was removed from a solar panel manufacturing facility which recently shut down. It was maintained extremely well and professionally removed from plant.
- Air cooled. (was running 50% glycol)
-Typical Applications: AC, Injection Molding, Welders, Ovens,
-Model number is: PACVPH0500D4

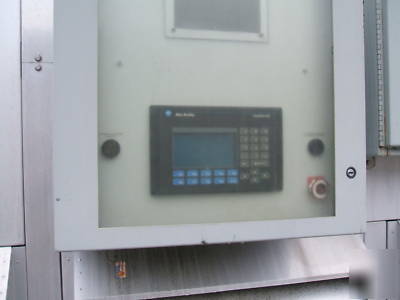

-Allen Bradley SLC 505 controls, permits 4 stage of compressor unloading. Controller provides local and remote annunciation for low flow, high glycol temperature, low glycol temp, and high and low refrig pressures for each circuit, and compressor overload failure.
-refrigeration: Dual circuit, R-22.
-compressors: Qty (4) manifolded scroll compressors.
-pump: 7.5 hp. "dual lead/lag pumps with automatic switchover".
-condensers: dual, air cooled.
-evaporator: insulated shell and tube.
-reservoir tank: 300 gallon STAINLESS
-Internal Loop: circulates the tank though the evaporatore to maintain tank temp.
-System Capacity Data: 648,000 Btu/hr while cooling a 40 percent glycol solution to 60F at an ambient temp of 95F. Consult factory for other variables.
-Manuals and docs included. Above details just a portion removed from spec sheet.
-We encourage and invite and inspection.
call (***)-514-3800 or email ****@verizon.net for more information.
