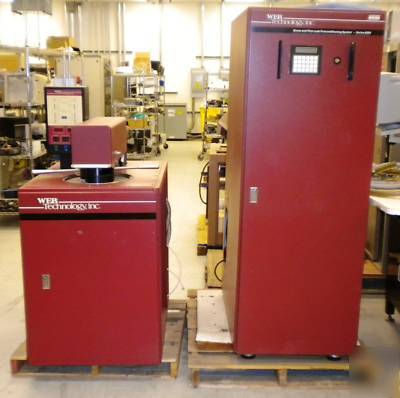

Web Model 8000 Gross and Fine Leak Preconditioning System
Gross and Fine Leak Preconditioning System Series 8000

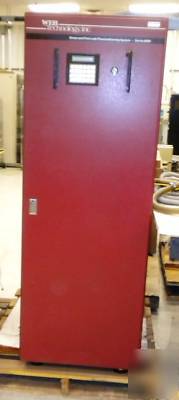

Base Station - Expandable from one to four preconditioning stations. Contains the Standard Bus Computer, FC storage tank, vapor recovery system and pimps.

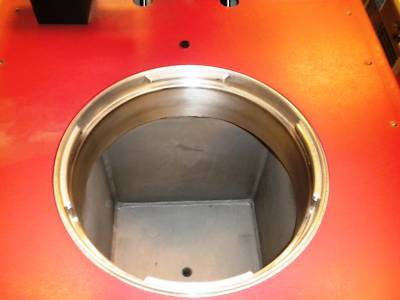

Tank Size Standard tank size is 8 ID by 29 depth (80% capacity increase over 6 ID tank). Filler blocks to reduce to 16 depth and component buckets are available.

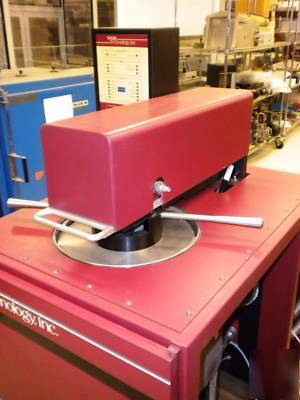

Mobile/Fixed Tanks Each tank station can be either fixed or mobile. Mobile tanks eliminate drag- out losses incurred when transferring tubes to a holding tank.
FC or Helium Each station can be initialized for FC gross leak or helium fine leak preconditioning.
FC Saver The Volumetric Compensator insures maximum fluorocarbon recovery and cost savings. The vapor recovery system further reduces FC usage.
CPU Control Control is via Standard Bus cards. Each station s electronics contain modular cards for control and diagnostics.

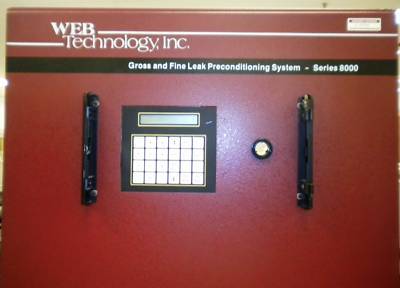

Controls/Display System includes all required controls and displays for preconditioning with Helium or FC in accordance with Military Standard 883C Method 1014.
Protection Unique two stage vacuum system protects vacuum pump from fluorocarbon injection.

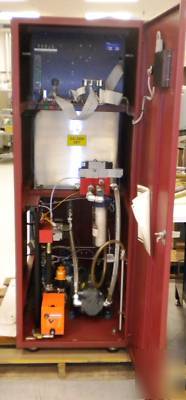

Serviceability Controls, valves, and support equipment are readily accessible. Menu driven display prompts assist in fault determination.
Reliability High reliability spool valve are used in place of poppet valves. Spool valves are self protecting against dirt, particulate matter, etc. Vacuum and pressure sensors are sealed against incoming liquid vapor.
Power 110v 60 cps / 2000 Watts
Size Base Station Unit 30 W. X 40 D. X 70 H.

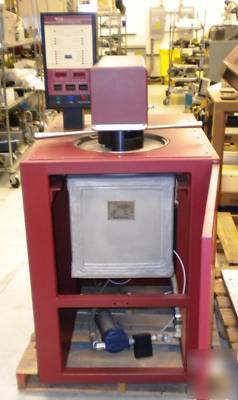

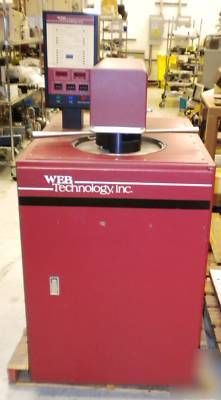

Tank Station 29 W. X 40 D. X 56 H.
Service and Operators Manual is Included
