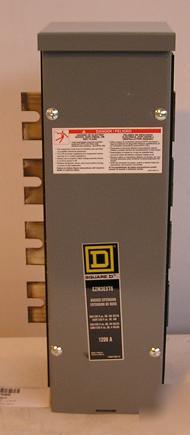

Sq d EZM3EXT6 1200A meter center bssd extension section
SQ D EZM3EXT6 1200A METER CENTER BSSD EXTENSION SECTION
Bussed Extension Sections (NEMA Type 3R)
Bussed extensions provide separation between enclosures where needed to avoid building obstructions. The bussed extension occupies an area 19.25 in. (489 mm) H x 12.0 in. (304 mm) or 6.0 in. (152 mm) W positioned vertically in line with the horizontal cross bus of main and branch unit enclosures. Extensions provide additional space between the main device and the branch unit where needed to meet local utility requirements. In this case the main device is deeper than the branch unit, and the dimension between the side of the main device and the centerline of the branch unit meter socket is too close to meet minimum clear space requirements.
Product: 1200A METER CENTER BUSSED EXTENSION SECTION
