South bend - johnson model 35FW-ac obi punch press

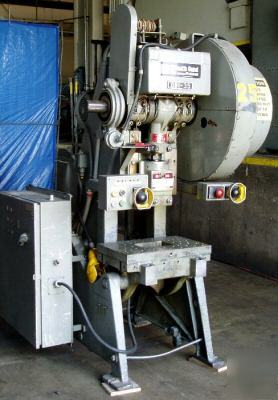

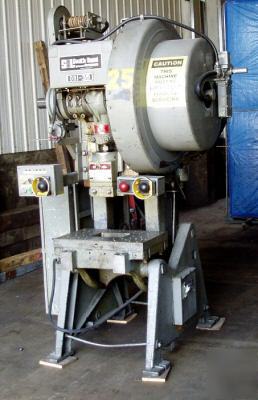

ONE(1) PRE OWNED SOUTH BEND/JOHNSON MODEL 35FW-AC OBI FLYWHEEL TYPE PUNCH PRESS:
CAPACITY: 35 TONSSTROKE: 3"SLIDE ADJUSTMENT - MANUAL: 2 1/2"SHUT HEIGHT - SDAU: 10 1/2"BED SIZE: 24" (LR) X 15" (FB)RAM AREA: 10 1/4" (LR) X 8" (FB)
OPENING IN BACK OF PRESS: 11"SPEED: 150 SPM EQUIPPED WITH:AIR CLUTCH & AIR BRAKE2" BOLSTER - 24" X 15"OPERATOR CONTROLS FOR SINGLE STROKE - INCH - CONTINUOUS STROKEDUAL PALM BUTTONS MOUNTED ON FRONT OF MACHINEMACHINE PRE WIRED 3 PHASE - 440V MOTOR: 3 HP., 3/60/220-440V DIMENSIONS OF MACHINE - APPROX: 48"(LR) X 50"(FB) X 80"(H)WEIGHT - APPROX: 3750#
- All Items Subject to prior Sale -
