Professional eprom programmer batronix BX48 batego
Batronix Professional Programmer Series

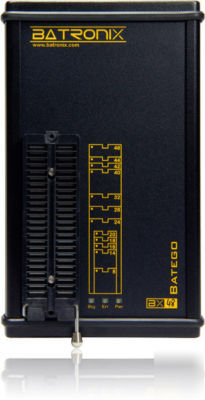

The new Batronix BX48 Batego is an extreme powerful, compact and easy to use universal programmer. Due to the specially developed Batronix pindriver ICs the BX48 reaches a new dimension of speed, low power consumption and compact design. Because of state-of-the-art technics the BX48 is the only programmer in the world which supports ICs with ultra low supply voltages of 1.0 Volt.
The BX48 Batego is with a height of 2.5cm very handy and is characterized by its design and the eloxadized Aluminium die-cast case. Therewith the programmer is the first choice even in the hard service sector!
The exceptional flexibility is attained by providing all power requirements via the USB port. A power adapter or batteries are not required, since all programming voltages are provided internally by a voltage generator from the USB supply voltage. The chips are programmed at a high level of quality and reproducibility in the shortest time possible through the use of optimized algorithms and micro-controller managed programming times. All supported chips can be programmed directly in DIP/DIL packages and suitable adapters are available for specialized packages such as PLCC, SOP, TSOP and QFP.
* Special FeaturesBX32 BatupoBX32P BarlinoBX40 BageroBX48 Batego
* USB PoweredUSB Powered: The device is powered through the USB port and doesn't need a power adapter or batteries.OKOKOKOK
* Chip Auto IdentificationChip Auto Identification: The programmer identifies chips automatically on their chip signature.OKOKOKOK
* Multi Programmer ControlFor volume production of chips up to eight BX32, BX32P, BX40 or BX48 devices can be controlled simultaneously from one PC using the Prog-Express software.OKOKOKOK
* Automatic Programming StartAutomatic Programmming Start: In production mode, the programmer detects newly inserted chips automatically and can automatically start the programming process. The operator can program chip series without any need to use the PC mouse or keyboard.OKOKOKOK
* Ultra Low Voltage SupportDue to state-of-the-art technology the BX48 supports as first programmer in the world supply voltages down to 0.9 Volt and therefore already the coming 1.0 Volt chip technologies according to JEDEC standard JESD8-14A.01.OK
* Ultra High Speed TechnologyDue to the specially developed Batronix pindriver ICs the BX48 is the fastest available programmer.OK
* Supported DevicesBX32 BatupoBX32P BarlinoBX40 BageroBX48 Batego
* very old NMOS EPROM (VPP > 15V)OKOKOK
* NMOS EPROM (VPP <= 15V)OKOKOKOK
* EPROM (27, 27C, 87, ...)OKOKOKOK
* EEPROM (28C, 28HC, ...)OKOKOKOK
* NV-RAM, Timekeeper (48, DS12, ...)OKOKOKOK
* FLASH (27E, 27SF, 28F, 28SF, 29C, 29F, ...)OKOKOKOK
* LPC, FWH, Firmware Hubs (39, 49, ...)OKOKOK
* Serial EEPROM (24, 25, 45, 93, 95, ...)OKOKOK
* PLD, SPLD, EPLD, GAL, PALCEOK
* Complete chip support listBX32 chip listBX32P chip listBX40 chip listBX48 chip list
* Security- and TestfunctionsBX32 BatupoBX32P BarlinoBX40 BageroBX48 Batego
* Device selftestThe programmer verifies its power supply and programming voltage regulation plus its internal data communication on start-up and shows an error message if there is any deviation.OK
* Pin contact testThe programmer checks if a chip was inserted correctly and every pin is connected.OK
* Chip ID testThe chip signature (if available) is verified before accessing the chip.OKOKOKOK
* Voltage monitoringThe supply and programming voltages at the connected chip are checked.OK
* Current monitoringDuring any chip action the current is checked continuously and all connections will be disconnected if it exceeds the maximum values.OK
* Data comparison under deviant voltagesAfter the programming process the chip data can be verified several times using minimum, nominal and maximum supply voltage. Therewith a durable data integrity is guaranteed.OKOK
* Checksum calculation (EPT-1, CRC-32, ...)The software is able to calculate and compare many different types of checksums.OKOKOKOK
Prog-ExpressProg-Express is a modern, intuitive and free control software for the Batronix USB programming devices. Programming a chip from a file or copying an existing chip is done with a few mouse-clicks thanks to pre-set process steps. Despite the easy to use interface, professional protection, split, auto-identify, auto-start and serial-number functions as well as a convenient hex-editor are available in addition to the basic functions like read, program, compare and erase.
You will find the complete description and a download link on our website.
We would like to show you in a video presentation how easy it is to use the Prog-Express software and the Batronix USB programming devices. Within 5 minutes you will learn how to program a chip with the data from a file, copy an existing chip, read a chip and program 20 chips in a volume production.
Prog-Express Video PresentationTime: 5 minutes
For volume production of chips up to eight BX32, BX32P, BX40 or BX48 devices can be controlled simultaneously from one PC using the Prog-Express software. These programming devices are a better alternative to expensive gang-programming devices due to their low cost and extremely high programming speeds, and also offer greater flexibility.
All Batronix BX programmer carry a warranty period of 5 years!
* Hardware DetailsBX32 BatupoBX32P BarlinoBX40 BageroBX48 Batego
* InterfaceUSB 2.0 Full Speed 12 Mb/sUSB 2.0 High Speed
* Pin driverSpecialized for memory chipsUniversal
* Low voltage support-downto 3Vdownto 3Vdownto 0.9V
* Dimensions [cm (inch)]9x8.5x2.5
(3.5"x3.3"x1")15.3x8.5x2.5
(6.0"x3.3"x1")13.7x8.5x2.5
* Weight without accessories / packaging155 g
* Weight with accessories / packaging349 g
* Software DetailsProg-Express
* File formats Binary, Intel Hex, Motorola S-Records, Straight Hex, Tektronix and extended Tektronix files
* File format auto detection OK
* OffsetData and chip offsets
* SplittingComplete 16 and 32 Bit splitting functions
* Serial number generatorVery comfortable serial number generator with support for external serial number files.
* Checksum calculation Checksum, MD5, SHA-1, EPT1 CRC16 and CRC32
* Hex-EditorVery comfortable and feature rich
* Software remote controlProg-Express can be remote controlled by other software with command line parameters and script files
* Software updates~2 weekly, free via download
* Supported operation systemsXP(32Bit + 64Bit), Vista(32Bit + 64Bit), Windows 7 (32Bit + 64Bit)
Additionally for BX32-BX40: Windows 98SE, ME, 2000, 2003 Server
* LanguagesEnglish, Arabic, Dutch, French, German, Italian, Norwegian, Portuguese, Russian, Spanish, Turkish
The delivery includes the programmer, USB cable, software and manual on cd.
