New force control ind. multi-speed drive(msdr) gear box,

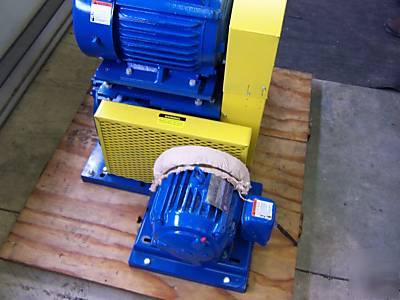

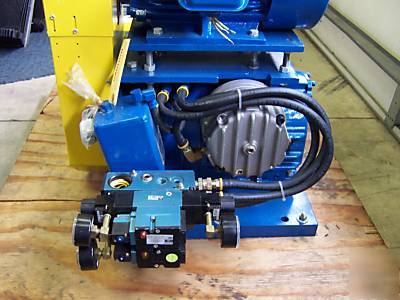

FORCE CONTROL IND. MULTI-SPEED DRIVE (MSDR)) ~NEW~
HP: 1.0 PH: 3 HZ: 60 INSUL CLASS B
FRAME: 184 VOLTS: 460 AMPS: 1.8
SF: 1.0 DUTY CONT.: 65*C MAX. AMB RPM: 1155
SHAFT END BRG. AFBMA.: 30BC02JPP3
HP: 3.0 PH: 3 HZ: 60 INSUL CLASS: B
FRAME: 215 VOLTS: 460 AMPS: 4.55
SF: 1.0 DUTY CONT.: 65*C MAX. AMB. RPM: 1165
SHAFT END BRG. AFBMA: 40BC02JPP3
MTG POSITION: VERTICAL-INPUT UP
OUTPUT SHAFT TYPE: SPLINED BORE
TYPE OF FRICTION DISC: GREEN HM200E
NOTES: SAME AS MT-800 EXCEPT FEED SPEEDS.
Total weight: 400 Lbs. / Ref. # NONE
