Hp vxi chassis E1725A time interval analyzer

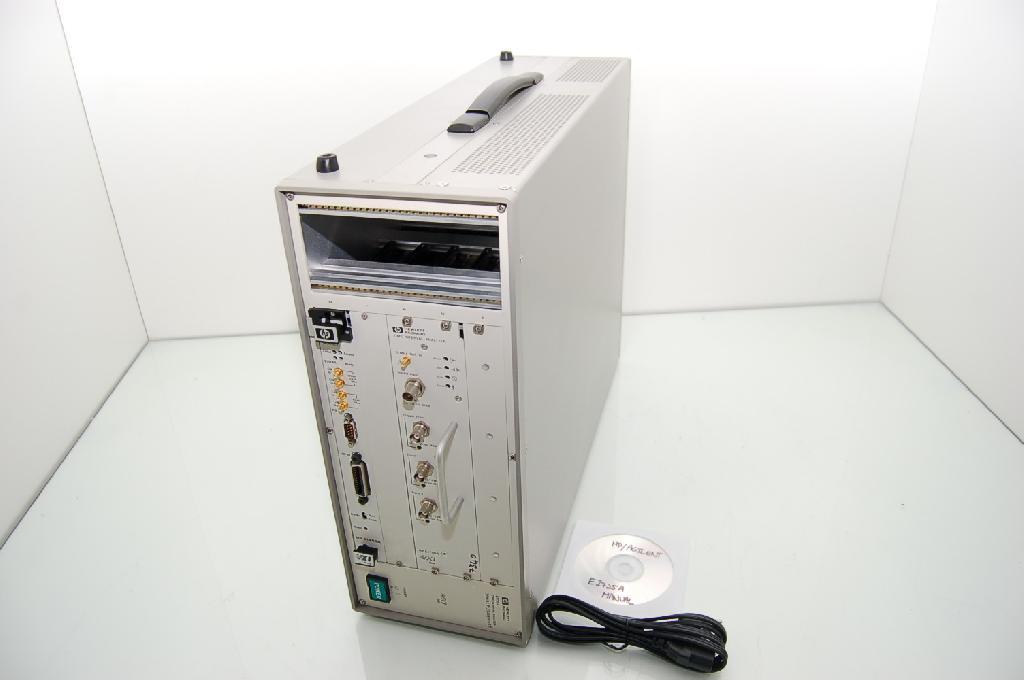

HP VXI Chassis E1725A Time Interval Analyzer
Up for sale, an HP VXI Chassis E1725A including HP/Agilent E1406A Command Module and HP/Agilent E1740A Time Interval Analyzer Module. Item is in very good condition, with only a few minor scratches on the case. All display lights function properly. Below are the technical specs/additional information about this item, courtesy of http:// /53456.htm.
HP VXI Chassis E1725A [TP: 1026.32]
* Mac Panel 16654 C-Size VXI Mainframe
* Agilent E1406A VXI Command Module
* Agillent E1740A Time Internal Analyzer 2-slot C-size VXI card
* Option 141 E1741A Time Internal Analyzer Software v2.51
* Option 147 E1747A Timing Pattern Analysis Software v2.51
* HP E1406A: Agilent E1406A:
The Agilent Technologies E1406A Command Module is a C-size, 1-slot VXI messagebased commander that provides Slot 0 and Resource Manager functions. It can act as a VMEbus system controller and GPIB (IEEE-488)-to-VXIbus interface device for transparently communicating with any manufacturer s message-based VXI modules. The E1406A Command Module has FLASH memory for downloadable drivers, so you can program Agilent register-based devices using the high-level SCPI programming language. It also translates SCPI commands for register-based instruments and therefore, makes these VXI devices as easy to program as message-based instruments.
* HP E1740A: Agilent E1740A:
The Agilent E1740A time interval analyzer module provides a 2-slot VXI card solution for high-performance measurement. Its ability to capture high-resolution timing measurements makes it suitable for jitter characterization, telecommunications, digital design, data storage, radar/surveillance, VCO/PLL, clock distribution, and high-speed mechanical applications. The E1740A is the heart of the E1725A/B/C VXI system and is available with software packages that tailor the instrument for specific applications. Products are designed for data storage device analysis, network synchronization measurements, clock jitter and SONET/SDH jitter analysis.
Thanks for looking and let me know if you have any questions about the item, I will do my best to answer. The unit is sold tested and is guaranteed NON-DOA with a 7 day ROR.
