Array 3711A 300 watt 30 a programmable electronic load

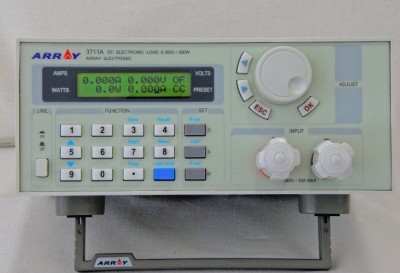

Array 3711A 300 Watt 30 A Programmable Electronic Load
The Array 3711A Programmable DC Electronic Load is a high performance programmable benchtop device used to test various DC power sources. It is easy to control from the front panel, or via the serial port from a PC. This unit can be set for constant current, constant voltage, or constant resistance and is well suited for the exacting needs of engineers, designers, or use in education, test and manufacturing. Users can create programs to precisely control the load values and durations of every step in a test sequence. As many as 9 programs of up to 10 steps each can be stored in the unit. The input power can be selected for the North American standard 120 VAC or 230 VAC for other areas.
Array 3711A DC Electronic Load Specifications
* LCD display with backlight
* Numeric keypad and rotary dial
* Voltage Level adjustment thru either
* Constant voltage, constant current mode, and constant resistance
* Maximum output voltage/power limitation
* Over temperature/over current/over power/over voltage/polarity reversed protection
* 9 programs of 10 stepss storage
* Can be controlled by PC via RS-232/RS-485 or USB*
PowerMS Power Management System software, ActiveX and DLL tools Support VB, VC++, DELPHI, LABVIEW
User s manual, AC cable, handles, software CD
Includes 1 Year warranty. We are a factory authorized USA stocking distributor.
We stock options, such as the USB adapter, for this unit at . Check with us for availability.
