Altech 24 vdc power supply ps-6024 60 watt

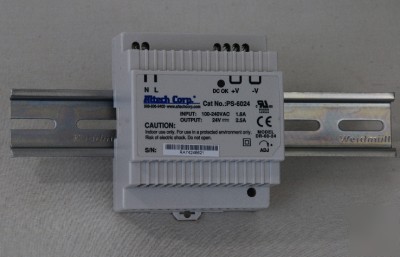

Altech 24 VDC Power Supply PS-6024
NIB ... 60W Single Phase Low Profile Power Supplies
* Universal AC Input / Full Range
* Input voltage range: 85-264V AC, 120-370V DC
* DC adjustment range:* 10% rated output voltage
* Overload protection:* 105%-160% constant current limiting, auto-recovery
* Over-voltage protection: 115%-135% rated output voltage
* Setup, rise, hold up time:* 100ms, 30ms, 60ms at full load and 230V DC
* Withstand voltage: I/P-O/P:3KV AC, I/P-FG:1.5KV AC*
* Working temperature: -20 to +50 C (-4 to +122 F) at 100%, and +60 C (+140 F) at 80% load
* UL Recognized, CE Rated, RoHS Compliant
* EN61000-4-2,3,4,5,6,8,11
* Military Standard: MIL-HDBK-217F
100ms, 30ms, 50ms/230VAC 200ms, 30ms, 18ms/115 VAC at full load
COLD START 18A/115VAC 36A/230VAC
Protection type: Shut down o/p voltage, re-power on to recover
-20 ~ +60 C (Refer to output load derating curve)
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X,Y,Z axes
UL60950-1, Design refer to EN50178, EN60950-1
Compliance to EN55011, EN55022 (CISPR22) Class B
Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, ENV50204, EN55024, EN61000-6-2, EN61204-3 Heavy industry level, criteria A
216.2K hrs min. MIL-HDBK-217F (25 C)
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 f & 47 f parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
