robotic xy loader and unloader system workcell
Video Available on website link below!

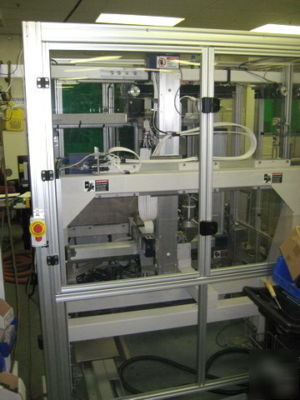

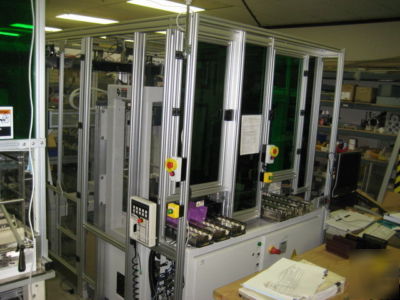

This is a robotic loader and unloader workcell system. It utilizes XY Robotic systems, with accurate vision placement. It was used to move hard drive disks back and forth into a sputtering system. The applications are many and varied. It would also be used in the manufacturing of solar panels, sign making, or many other areas. There is a video link below, or a video file can be sent on request.

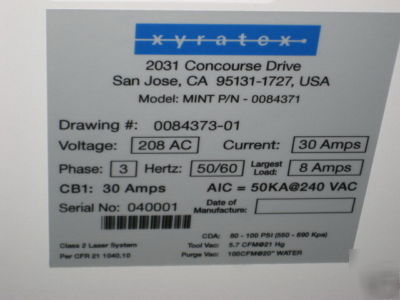

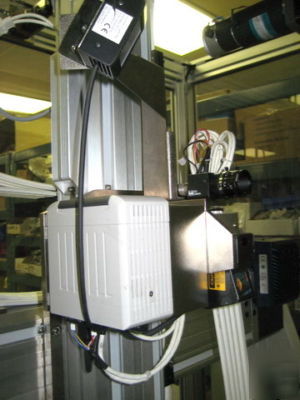

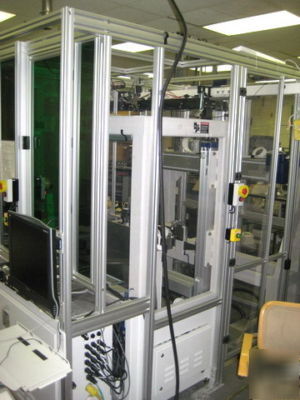

Automated and Robotic Workcell Loader and Unloader . This is the MINT loader automated Workcell Built in 2007. P/N-100003059. With (3) CCD Cameras. 208VAC, 3Ph, 50/60Hz.
This was used by a fortune 500 company, in the testing of hard drives, and related software. The cost to build was $380,000.
The robotic functions, and workcell applications can be used for many, and various applications.
There are also many valuable robotic parts that could be re-used in this system. There are 1 axis units, 2 axis units, and 4 axis units. There are hundreds of senvors, vision systems.

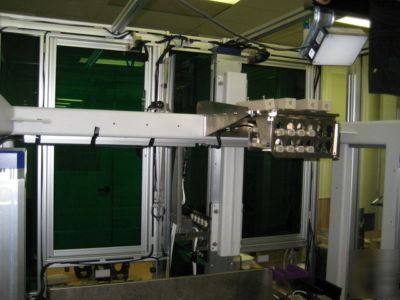

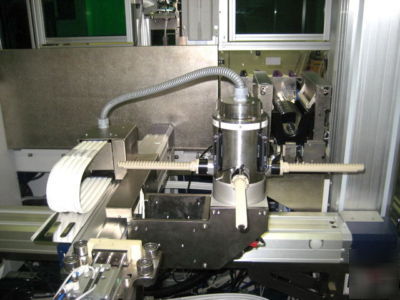

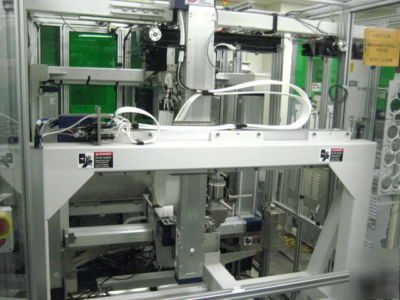

Includes 4-Axis Cartesian (XYZ-Theta) loading/unloading robots, and incorporates a 95mm disp, sputter system pallet loader and unloader.

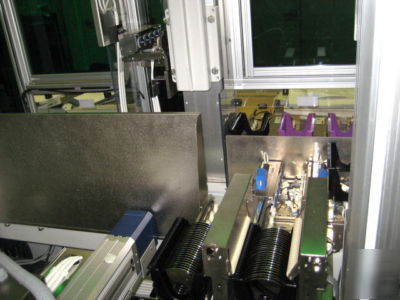

25-slot dual acting breakaway mandrels

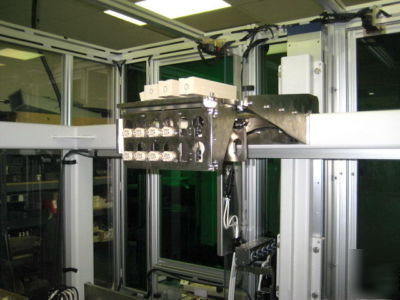

4-up end effector, 100 disk capacity
1-Axis cassette elevator, SFP conveyor compatibility
Hi-Res pictures, video, and electronic manual with detailed pictures are available upon request.
Video and additional details available at: http:// /equip_detail/equip/1003/
Unit is excellent for "hard drive manufacturers, the Semiconductor industry, any company that does fast 3-D work, engravers, sign makers, shops that do custom routing, and many other possible applications.
For questions, call David at: (***) 238-2076
