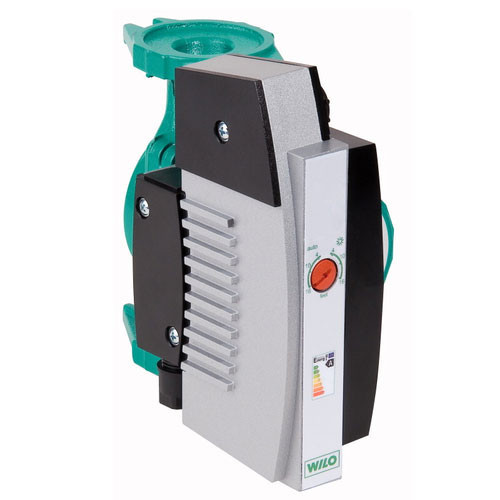

Wilo stratus eco 16F cast iron circulator 4117300
WILO Stratus Eco 16F CAST IRON CIRCULATOR 4117300
The WILO Stratos ECO is the award-winning standard for high-efficiency residential circulators. Automatically adjusting to system demands, pressure by-pass valves, balancing, over-pumping and noisy zones are a thing of the past! Like the commercial Stratos, the ECO offers up to 80% energy savings compared to an uncontrolled circulator, consuming only 5.8 to 59 watts. Replacing up to twelve competitor's models, there is only one pump you need in the truck!
* For use in water and water/glycol applications up to 50% concentration
* Up to 80% power savings in comparison with uncontrolled circulators
* Highest efficiency thanks to ECM technology
* Automatically adjusts to system demands
* 3x higher starting torque than conventional circulation pumps
* Seal-less circulating pump with flanged connection
* Electrical quick connection with spring clips
* 6 " flange to flange dimension matches common models
* Optional night setback on all models
* De-Blocking/Anti-seizing function
* Electronically commutated motor and automatic performance adaptation
Wilo Stratos ECO 16F High Efficiency Circulating Pumps 115v
The Difference Between the ECO 16F and ECO 16FX is the FX Flanges are Rotated 90
Maximum Delivery Head: 16(ft), 4.9(m)
Maximum Flow Rate: 15.5(USGPM), 3.5(m3/h)
Temperature Range: 60 F - 230 F (15 C 110 C)
Maximum Working Pressure Pmax: 145PSI
Ambient Temperature: 104 F (40 C)
Electronically controlled circulating pumps with flanged connection
Residential closed loop hot water heating systems, water and water glycol solutions up to 50% concentration (cast iron version) and domestic hot water recirculation systems (bronze version)
Maintenance free single-head circulator
ECM-Technology for outstanding efficiency
Energy savings up to 80% over standard pumps
For all heating, air-conditioning and cooling systems in the temperature range of 60 F (+15 C) up to 230 F (+110 C)
For domestic hot water systems in the temperature range of 60 F (+15 C) up to 150 F (+66 C)
Automatic setback mode (Autopilot)
Minimum electrical power consumption: 5.8 W
* Bearing: carbon, metal impregnated
* Impeller: reinforced PPS (polypropelene)
