New 16 inch south bend lathe taper crossfeed screw nut

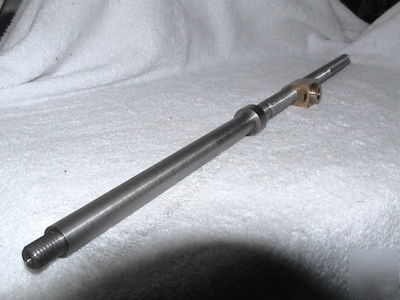

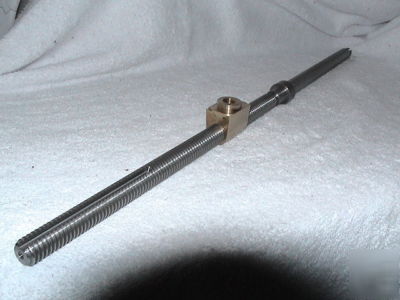

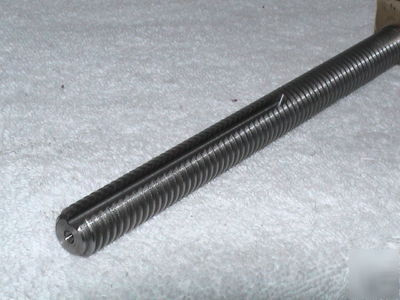

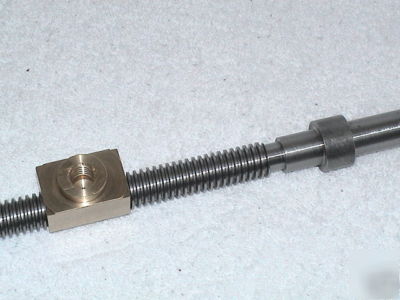

NEW SHOP MADE SOUTH BEND LATHE TAPER CROSS FEED SCREW AND NUT FOR 16 INCH SOUTHBEND LATHE 11/16 X 8 LH 4G CLASS THREAD ON SHAFT AND 11/16 DIAMETER ON THE UNTHREADED END OF SHAFT.187 KEY WAY23 7/8 INCHES TOTAL LENGTH, UNTHREADED PART IS 9 INCHES TO CENTER SECTION, AND THREADED PART IS 13 5/8 INCHESNUT HAS 1/2 X 13 MOUNTING THREADS, .875 DIA ON TOP HAVE THE TAPS AND DIES ALL IN 4G CLASS OF THREADS TO MAKE SECTIONS OF ACME THREADED ROD AND NUTS TO YOUR REQUIREMENTS. 3/8 X 10 RH AND LH, 7/16 X 10 LH, 5/8 X 10 LH AND 11/16 X 8 LHIF YOU HAVE A MACHINE THAT PARTS ARE NO LONGER AVAILABLE OR COST EFFECTIVE I CAN FIX YOU UP WITH A BLANK SHAFT THAT IS HALF THREADS THAT YOU CAN FIT TO YOUR MACHINE. OR IF YOU NEED A LONGER FEED SCREW THAN NORMAL FOR SOME SPECIAL APPLICATION OR UPDATEING A MACHINE. QUESTIONS? PLEASE ASK TROSS96586@AOL.COM
