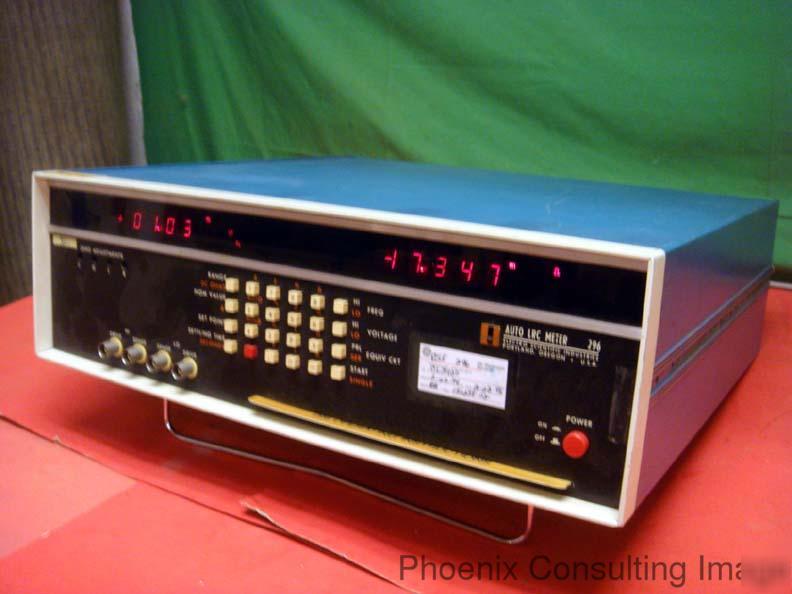

Esi tegam 296 automatic lcr digital impedance meter
ESI TEGAM 296 AUTOMATIC LCR DIGITAL IMPEDANCE METER
Acquired from a large manufacturer's R&D department after a downsizing. Actual item is shown. Only what is shown is included. Guaranteed functional. Sorry, no manual. Last calibration date is pictured. Model is 296 and S/N is 42536.
This unit passed all diagnostics. We set values to 0.0000 and started auto sequence and found the result to be as expected.
INCLUDES instructions, remote GBIB, Parallel output.
The 296 Digital Impedance Bridge is a microprocessor-controlled bridge! Making high speed measurements of L, R, C, G and calculating D and Q has never been easier. Ranges: 19.999 mH to 199.99 H; 100 mohms to 1 Mohm; 199.99 pF to 19.999 mF at 1kHz. The 296 operates equally well as a stand alone bench top instrument, or in a complex automatic testing system. Manual programming is done with a 24-button front-panel keyboard. The operator just "tells" the meter what to measure, the two 4 1/2-digit LED displays simultaneously read out the reactive and loss components of the unknown. Programmable limits feature provides 10 user-selected comparison values for multi-band sorting. Along with the programmable limits, the 296 also features deviation measurement as standard. Other features include: Autoranging, Dual Frequency (1kHz & 120Hz), Dual test voltage/current levels, and Guarded four-terminal connection, front and rear panels. 0.1% basic accuracy. Up to 28 measurements per second 0.1% Basic accuracy Input Protection
From Wikipedia, the free encyclopedia
A LCR meter (Inductance (L), Capacitance (C), and Resistance (R)) is a piece of electronic test equipment used to measure, among other things, the impedance (inductance, capacitance, resistance) of a component.
Usually the device under test (DUT) is subjected to an AC voltage source, then the voltage over, and the current through the DUT are measured. The measured impedance consists of real and complex components. The phase angle ( ) also is an important parameter.
