automation direct logic 205 koyo D2-09B plus modules


This working system was pulled from a factory automation engineering lab.

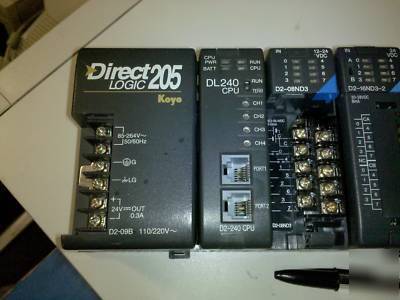

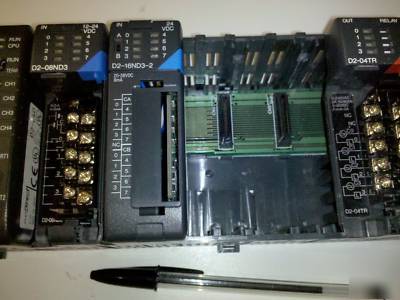

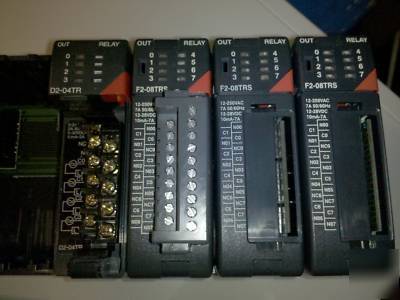

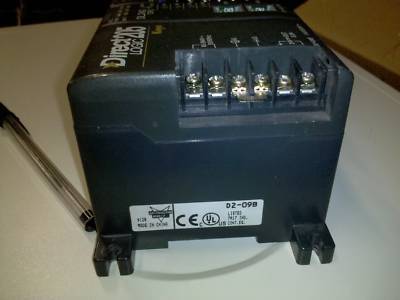

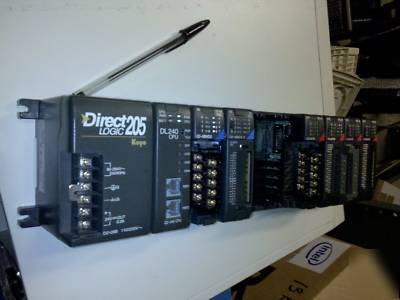

THE CHASSIS AND ALL MODULES SHOWN IN THE PICTURES ARE INCLUDED:1 - 205 9-SLOT CHASSIS1 - DL240CPU1 - D2-08ND3 8PT 12-24VDC SINK SOURCE INPUT1 - D2-16ND3-2 16PT 24VDC SINK SOURCE INPUT1 - D2-04TR 4PT ISOLATED RELAY OUTPUT 5-30VDC OR 5-250VAC3 - F2-08TRS 8PT RELAY OUTPUT 12-28VDC OR 12-250VAC
Following is a summary of the system specifications from:http:// /adc/Overview/Catalog/Programmable_Controllers/DirectLogic_Series_PLCs_(Micro_to_Small,_Brick_-a-_Modular)
A DL205 PLC is the lowest cost, most versatile solution you'll find. In fact, all you need to do is pick out a CPU, plug it in the first slot of the base you choose, and then mix and match various modules into the available slots.
The DL205 modular PLC features:
* Four base sizes with built-in power supply, including 12/ 24 VDC, 110/ 220 VAC and 125 VDC power sources.
* AC/DC discrete in/out, up to 32 points
* 12-bit and 16-bit analog inputs and outputs
* Data communications, including serial and Ethernet modules
* Counter input/ pulse output
* Remote I/O master and slave, Ethernet and serial remote I/O
