> Nsk e 3000 series 90 angle spindle rax-271E
Nsk e 3000 series 90 angle spindle rax-271E

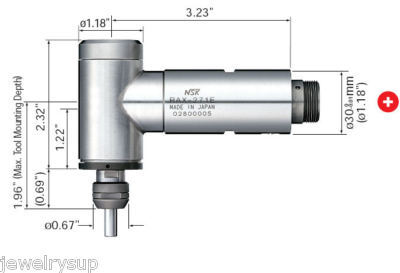

90 ANGLE SPINDLE RAX-271E 1.18" (30mm)
The E3000 Series is capable of up to 30,000 min-1(rpm) and employs a high-speed, ultra-quiet brushless motor.
-RAX-271E Spindle ; Collet 1/8" (CHK-3.175) : 1 pc. Collet Nut (K-265) : 1 pc. Wrench (12 x 14) : 2 pc. (22 x 27) : 1pc.
RAX-271E Spindle Specifications
This spindle is capable of working on corners difficult to work with straight type, drilling on side faces and milling of grooves.
Maximum allowable motor speed for the spindle 30,000 min-1(rpm)
Maximum rotating speed at the cutting tool 20,000 min-1(rpm)
Maximum Motor Speed 30,000 min-1(rpm)
The maximum motor speed 30,000 min-1(rpm) is realized by using high performance brushless motor and ceramic bearings.
