New MES1B modbus tcp to modbus ascii/rtu converter.

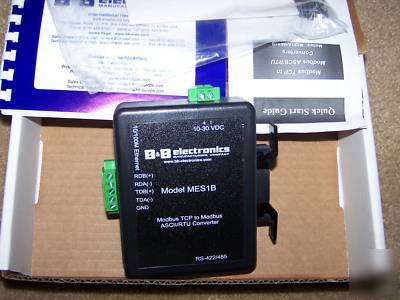

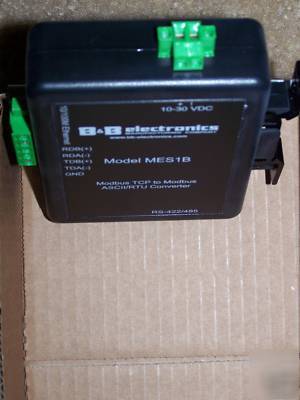

Up for sales is a New MES1B Modbus TCP to Modbus ASCII/RTU Converter., connects via RS-422/485 (DIN rail not included.)
with Modbus Ethernet Serial Servers
Converts Modbus ASCII/RTU to Modbus/TCP
Small, economical and configurable
Modbus Master and Modbus Slave operation
MES1B Modbus TCP to Modbus ASCII/RTU converters are easy-to-use, cost-effective solutions for connecting new
and existing Modbus ASCII/RTU serial devices to TCP/IP networks.
MES1B facilitates Modbus devices with RS-422 four-wire point-to-point interfaces, or RS-485 four or
two-wire multi-drop bus connections.
MES1B is a flexible device that allow for many different modbus network configurations.
1. Modbus ASCII/RTU slave devices can communicate over a TCP/IP network to Modbus TCP/IP masters.
2. Modbus ASCII/RTU master devices can communicate over TCP/IP networks to modbus ASCII/RTU master devices
3. Modbus ASCII/RTU slave devices can communicate over a TCP/IP network to other modbus ASCII/RTU devices.
In this mode 2 devices are required to allow the modbus serial protocol to tunnel over a TCP/IP network.
Through the use of both panel and DIN rail mounting options and support for screw terminal block interfaces for both power and
serial, MES1B is designed to meet a variety of industrial applications.
10-30 VDC power input with removable terminal blocks
Serial connections: MES1B: terminal block
Auto detecting 10/100 Mbps Ethernet RJ-45 port
LED indicator provides at-a-glance operation
Configuration via telnet console
Operating temperature: -20 to 80 C

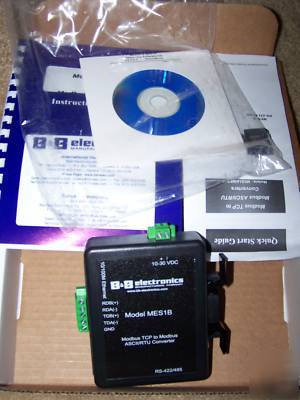

CD-ROM disc: XPort Device Installer software; PDF of MES1A/MES1B User Manual; PDF of Quick Start guide
Windows 98/ME/2000/XP/NT 4.0 (call Manufacturer for Tech Support for other operating systems)
MES1B 1.25 x 4.5 x 4.75 in (3.2 x 11.3 x 12.2 cm)
Removable screw terminal (2) block with screw down
10% to 90% R.H. non-condensing
Green/Orange LED (on Ethernet connector)

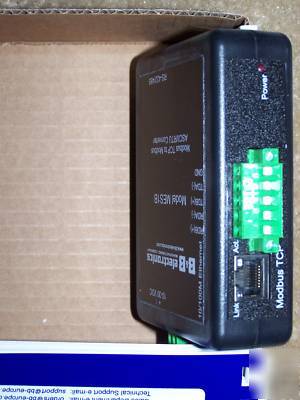

Ethernet Connector: Single RJ-45 female (with built-in LED indicators)
IEEE 802.3 10/100 Mbps auto-detecting, 10BaseT, 100BaseTX
TCP, UDP, DHCP, SNMP, TELNET, ICMP, ARP, TFTP, Modbus ASCII, Modbus RTU, Modbus/TCP
MES1B removable screw terminal (5) block with screw down
MES1B RS-422/485 TDA(-), TDB(+), RDA(-), RDB(+), GND
300, 600, 1200, 2400, 3600, 4800, 9600, 19200, 38400, 57600, 115200 bps
Telnet, XPort Device Installer with integrated Telnet
Static IP or DHCP (IP is set to 0.0.0.0)

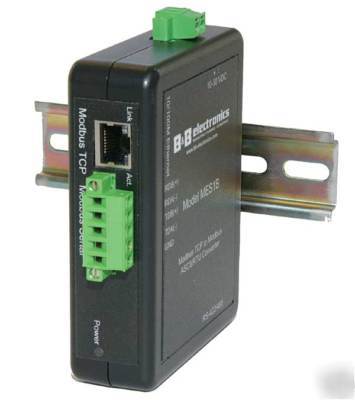

DIN/Panel mount bracket (DIN non included)
Thanks for looking. Don't forget to check my other items I have for sale.
