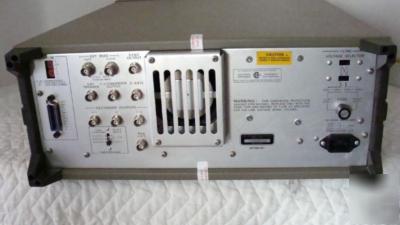

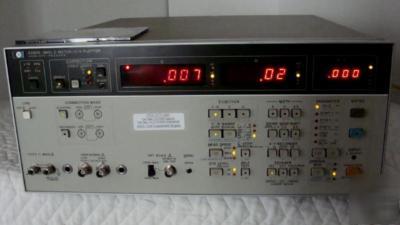

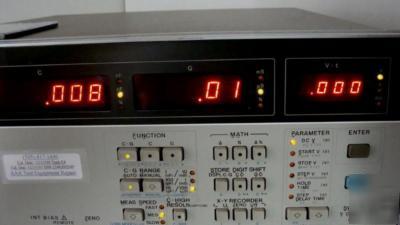

Hp - agilent 4280A 1MHZ c meter/c-v plotter w/opt
HP 4280A 1 MHz C Meter/C-V Plotter. Built-in sweepable DC bias source and timer for C-V (Capacitance Voltage)/C-t (Capacitance-Time) measurements. High speed C-t measurements with minimum measurement interval of 10 ms (10 micro-seconds if an external pulse generator is used). Basic C measurement accuracy: 0.1 percent. Test lead extension up to 5m. Option 001 function increases C measurement resolution by one digit with offset reference value. C offset range: 0pF-1023 pF (1 pF increment). C offset value can be set by measured data or numeric key.
For more information from Technical Data: http:// /specs/HP%204280A%20PLOTTER%20SPECS.PDF
