Honeywell ZD8X12 rectangular parallel blade damper

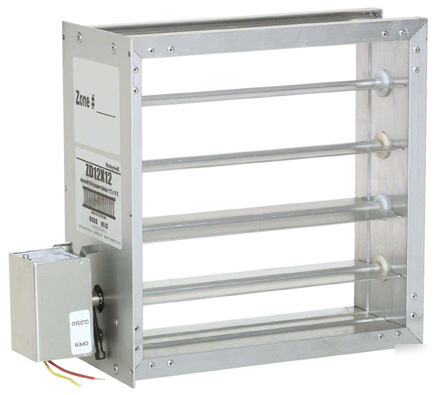

Honeywell ZD8X12 Rectangular Parallel Blade Damper
Kevlar gearing reduces wear, more than doubling damper life.
Mechanical visual position indicator for damper status.
Solid construction using extruded aluminum frame and blades.
Parallel blade design for low leakage performance.
Quieter operation with fewer blades.
Simple, easy-to-wire, two-wire installation.
Reliable, strong, 24-volt spring-return motor.
Fail-safe, normally open operation.
Compatible with conventional and networked zoning.
Ordering Instructions: Order ZD (dimension 1) x (dimension 2). (Motor is always mounted on dimension 2 side.) For example, ZD10x8 is a 10 in. x 8 in. damper with the motor on the 8 in. side; but a ZD8x10 is a 8 in. x 10 in. damper that has the motor on the 10 in. side.
Damper can be installed in any orientation (mounting side can be on either the bottom or the side of the duct).
30 seconds power open/10 seconds spring return
