Electroswitch rotary D4C0212S 2 pole 12 position

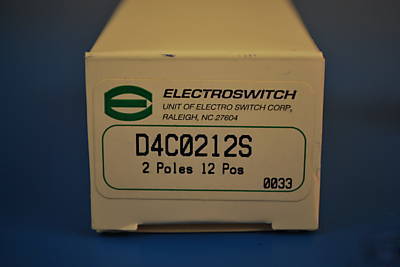

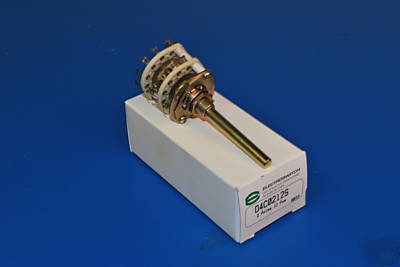

Electroswitch Rotary switchD4C0212S 2-Pole, 12 Position. New in box.
Feature maximum voltage flash-over points, high-Q, low-loss
ceramic bodies; minimum intercircuit capacity; insulated frontback
clips. Positive 30 indexing; adjustable stop or continuous
Rated: 1.5 A @ 28 VDC, 500 mA @ 115 VAC. Current Carrying Capacity: 9 amps. Dielectric Strength: 1,500 VAC between current carrying parts and ground. Contact Resistance: Average initial 3.5 milliohms.
Glass epoxy in excess of 750,000 megohms.
Ceramic in excess of 1,000,000 megohms. Diallyl in excess of 900,000 megohms.
