Aluminum compression power cable lugs / connectors #4

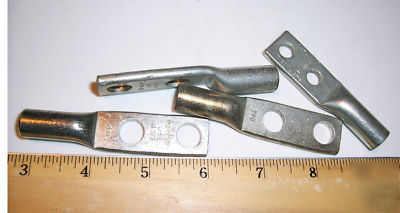

Total (4) Compression Lugs for Connecting #4 Gauge Power Cable
Aluminum, Tin Plated, Two Hole Lugs made by Western Electric for connecting stranded #4 gauge (AWG) power cable or ground lead to a bus bar or anything else.
Three of the #4 gauge lugs are engraved with Western Electric part number KS-15977 L53 and they are 3 inches long with two holes 3/8 inch in diameter each. The holes are spaced 1 inch apart measuring from center of hole to center of other hole. The tongue is 3/4 inch wide.
The other #4 gauge lug is engraved with Western Electric part number KS-15977 L303 and is about 3 inches long with two holes 1/4 inch in diameter each. The holes are spaced 3/4 inch apart measuring from center of hole to center of other hole. The tongue is 3/4 inch wide.
All 4 lugs can be crimped with any compression tool using a Pink Lower Die (T&B-13477) and Upper Die (T&B-13475) or any die that will crimp the #4 gauge aluminum barrel of the lugs.
You will get 4 (#4 gauge) lugs/connectors with sizes listed above. The lugs/connectors are in very good condition and have never been used.
