Parker linear actuator ( rail slide stage cnc router )

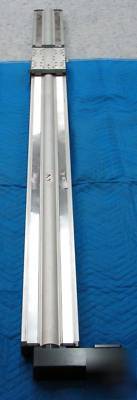

* Parker Daedal Linear Actuator - 68" Travel
* Type of Motor Mount: Belt Drive

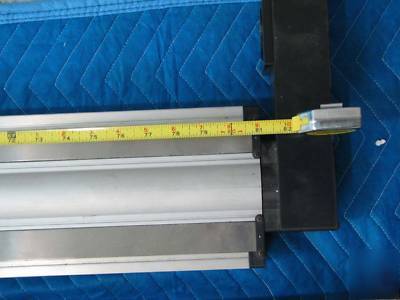

* Length of Travel: Approximately 68
* Length of Module: Basic Module is 81 L
* Length Overall: With Motor Mount it s 84" L
* Width of Module: Basic Module is 6" W
* Width Overall: With Belt Motor Mount it s 10 Wide at one end
* Weight: Approximately 80 lbs.
Other Technical Information: For more technical details, you can download information from the manufacturer's website:
http:// /products/Ball_Screw_and_Lead_Screw_Tables__5508__30_32_80_567_29.html
In particular, the 400XR Product Family Catalog, and the 400XR Series Product Manual. These units appear to be the same as the current 406XR series.

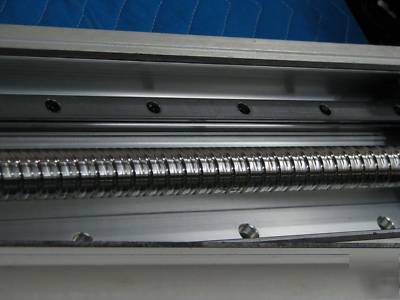

Condition: Used. While the exterior is less than immaculate, the ball screw and rails are very clean and show little sign of wear. Travel appears to be tight and smooth.
Regular hours available for pickup: M-F 9AM-5PM EST, Sat 9AM-12PM EST.
