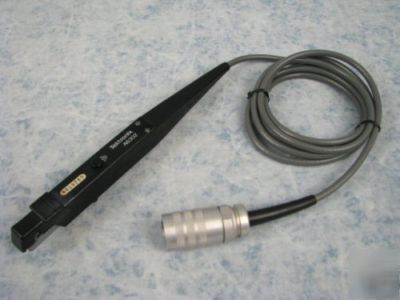

Tektronix A6302 dc to 50MHZ current probe
Tektronix A6302 DC to 50MHz Current Probe Used
Model/Part No:A6302 Our Item ID: 5402
The A6312, A6302, and A6303 offer a wide range of current measurement capability for the lab and bench environment. The A6312 covers frequencies from DC to 100 MHz while the A6302 covers DC to 50MHz. Both clip onto conductors up toe 3.81mm (0.15in) and measure currents up to 20A and peak currents up to 50A as long as they do not exceed the amp *second product of 100A*s.
The A6302 and A6303 are also compatible with teh 11A16 2-CH Current Probe Amplifier for the 11000 and DSA Series oscilloscopes. With the 11A16, the A6302 is rated for 10.5A, and teh A6303 for 52.5A.
Up to 0.15in. conductor diameter
Item Tested?: Not testedPhysical Condition: Good; Working Condition: Not Tested or Unable to Test | 12x 6x6 | 1
