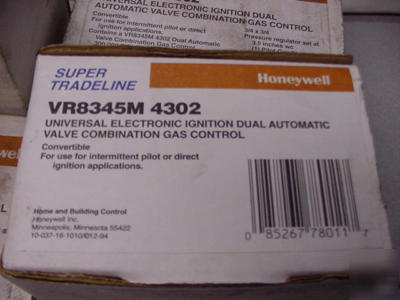

Honeywell VR8345M 4302 automatic electronic gas valve
Honeywell VR8345M 4302 Universal Electronic Ignition Gas Valve
Honeywell Dual Direct Ignition/Intermittent Pilot Gas Valve
Honeywell VR8345M 4302 Gas Valve has 300,000 Btu per hour capacity, comes with 3/4" x 3/4" inlet and outlet size, and with standard opening characteristics. This unit can be mount from 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically. The VR8345 controls replace Honeywell VR8204A,M; VR8205A,M; VR8304M; VR8305M; White Rodgers 36E01; 36E36 series (standard opening ); Robert Shaw 7100ER; 7200DER; and 72001DER series.
* Ignition Type: Direct Ignition; Intermittent Pilot
* Inlet/Outlet Size: 3/4" x 3/4"
* Body Pattern" Straight-through
* Opening Characteristics: Standard
* Capacity: 300,000 BTU/hr; 30,000 BTU/hr minimum 300CFM
* Pressure Regulator Setting (psi) 3.5" wc
* Pressure Regulator Setting: 0.87 kPa
* Pressure Tapping: 1/8" NPT with plug
* Electrical Connections: 1/4" male quick-connects
* Electrical Ratings: 24 Vac/60 Hz 0.7A
* Temperature Range: -40 F to +175 F/ -40 C to +79 C
* Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
* Dimensions: 5 3/8" H x 4 1/16" W x 2 11/16" D
* Dimensions: (mm) 135 mm H x 104 mm W x 69 mm D
* Includes: Two 3/4" x 1/2" NPT reducer bushings and one 1/2" x 3/8" NPT bushing.
