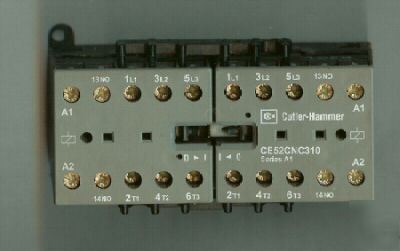

Cutler hammer CE52CNC310A reversing contactor 3 pole
NEW?. (If Not .. EXCELLENT Condition). CUTLER HAMMER IEC Mechanically Interlocked Reversing Contactor, Miniature, 3 pole, Screw Pressure Plate Terminals, 1NO Auxillary Contact, 110-127 VAC Coil, Catalog Number CE52CNC310A, UL Listed, CSA Certified.
Design: IEC, Series: Miniature, Type: Contactor, Operation: Mechanically Interlocked Reversing
* Max. UL AC-3 Ampere Rating 600 VAC (Amp): 12
* IEC 947 AC-1 Thermal Current Rating 600V (Amp): 20
*Maximum kW Rating at Rated Voltage, 3-phase: 5.5 at 400/440V
*Maximum UL Horsepower at Rated Voltage, 1-Phase: 1 at 110/120V, 2 at 200/208V, 3 at 220/240V, 5 at 440/480V, 5 at 550/600V
*Coil Voltage Rating: 110 - 127 VAC
*Connection Type: Screw Pressure Plate
*AC coil has a integrated protective circuit-rectifier bridge and varistor included. Coil voltage frequency is 40-450 Hz, and power consumption is 3.5 VA.
