1000 gal tolan reactor, s/s, 100/150#
1000_GAL_TOLAN_REACTOR,_S~S,_100~150-num- 1000_GAL_TOLAN_REACTOR,_S~S,_100~150-num-1000_GAL_TOLAN_REACTOR,_S~S,_100~150-num-
1000_GAL_TOLAN_REACTOR,_S~S,_100~150-num-
1000 GAL TOLAN REACTOR, S/S, 100/150#

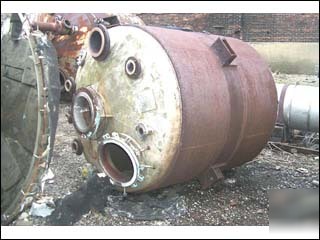

ONE (1) Used 1000 gallon Tolan Reactor Body, 316 S/S construction, 5'6" diameter x 5' straight side, dished top and bottom, rated 100 PSI or full vacuum internal at 500 degrees F, jacketed for 150 PSI at 500 degrees F, jacketed on bottom head and full straight side, 16" manway, 12" center flange, (1) 8", (3) 3", (2) 2" top nozzles, 2" center bottom outlet baffles, National Board No. 465, Serial No. 4420-2.
