CD40106, cmos hex schmitt trigger, qty 20

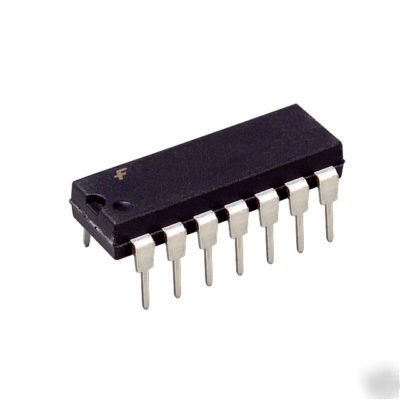

CD40106BCN, CMOS Hex Schmitt Trigger, 14 Pin DIP, Quantity 20, Fairchild Semiconductor.
CD40106B consists of six Schmitt-trigger circuits. Each circuit functions as an inverter with Schmitt-trigger action on the input. The trigger switches at different points for positive- and negative-going signals. The difference between the positive-going voltage and the negative-going voltage is defined as hysteresis voltage.
The CD40106BC Hex Schmitt Trigger is a monolithic complementary MOS (CMOS) integrated circuit constructed with N and P-channel enhancement transistors. The positive and negative-going threshold voltages, VT+ and VT-, show low variation with respect to temperature (typ 0.0005V/ C at VDD = 10V), and hysteresis, VT+ - VT- is greater than or equal to 0.2 VDD is guaranteed.
All inputs are protected from damage due to static discharge by diode clamps to VDD and VSS.
* Wide supply voltage range: 3V to 15V
* High noise immunity: 0.7 VDD (typ.)
* Low power TTL compatibility: Fan out of 2 driving 74L or 1 driving 74LS
* Hysteresis: 0.4 VDD (typ.), 0.2 VDD guaranteed
* Wave and pulse shapers
* High-noise-environment systems
* Monostable multivibrators
* Astable multivibrators
Quantity 20 ..... New Parts !!!!!
