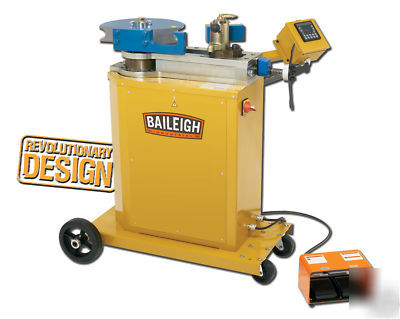

Baileigh rdb-250 tube bender pipe bending tubing rmd
http:// /videos/rdb250-video.php
Click Here for specifications:
http:// /benders/tube-pipe-bender-rdb250.php
The RDB-250 tube bender has the strength to bend up to 2-1/2" tubing and 2" Schedule 40 Pipe, and can be programmed with
up to 170 programs with up to 10 bends per program. Up to a 20' indexing table can be attached
when multiple bends in variable planes are required that is great for big production runs (sold separately)
Check out the video below of the Universal Bend Plate that will also fit on this bender (sold separately)
http:// /videos/ubp1200-videos.php
The RDB-250 tube bender can bend at speeds up to 9 seconds for a 180 degree bend and can be programmed to bend up to 360 degrees,
great for solid rod applications. Complex serpentine bends can be done with ease.
A quick counter die release allows for quick removal of bends and allows for furthering bending pre-bent material.
The counter die positioner has a numerical counter so repositioning of the counter die is a breeze when recalling bend programs.
Engaging bends is as simple as pressing the forward foot pedal, and reverse pedal when complete.
Capacities: Mild Steel Pipe (Schedule 40) 2"Aluminum Pipe (Schedule 40) 2"Stainless Steel Pipe (Schedule 40) 1.5"Mild Steel Round Tube (Wall) 2.5" (.125)Aluminum Round Tube (Wall) 2.5" (.156)Stainless Steel Round Tube (Wall) 2.375" (.125)Chromolly Round Tube (Wall) 2" (.125)Mild Steel Solid Rod 1.25"Mild Steel Square Tube (Wall) 2" (.125)Minimum OD .25"Maximum Speed to 180 Degrees 9 SecondsMaximum Center Line Radius (CLR) 9"Minimum CLR .5"Power Requirements 220V (1-Phase)Weight (Lbs.) 610Length 40"Width 32"Height 43"
We offer over 2,200 tooling options that include tube, pipe, square, solid rod and rectangle.
Die sets can be ordered separately by email or phone.
If you do not see a die set that you need, give us a call, or email ****@bii1.com
http:// /pdf/tooling/rdb/RDB-250%20Tooling%20List.pdf
