42" tbl 2HP spdl bridgeport series 1 vertical mill, tra
42" Tbl 2HP Spdl Bridgeport Series 1 VERTICAL MILL, TRA
42" Table 2HP Spindle Bridgeport Series 1 VERTICAL MILL, TRAK 2-AXIS DRO

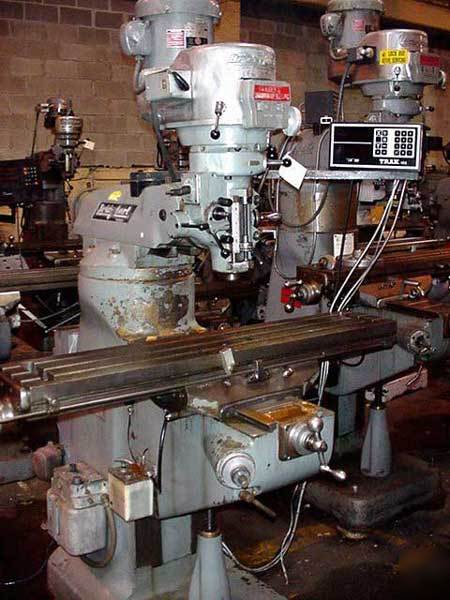

9" X 42" BRIDGEPORT VERTICAL MILLING MACHINE
MODEL: SERIES I, S/N: 12/BR 233017, NEW: 1984
TABLE SIZE ............................ 9" X 48"
MAXIMUM WEIGHT OF WORKPIECE ........... 750 LBS
LONGITUDINAL TABLE TRAVEL ............. 30"
CROSS TRAVEL .......................... 12"
QUILL TRAVEL .......................... 5"
KNEE TRAVEL ........................... 16"
RAM TRAVEL ............................ 12"
MINIMUM / MAXIMUM THROAT DISTANCE ..... 6-3/4" / 18-3/4"
INFINITELY VARIABLE SPEED RANGE ....... 60-4,200 RPM
SPINDLE TAPER ......................... R-8
QUILL FEEDS ................... 0.0015", 0.003", 0.006"
APPROXIMATE WEIGHT ............ 2,000 LBS
INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE
* * * VERY GOOD CONDITION * * *
